| Part Number | Description |
| YV-3208FE-SFP | 10/100M 2SFP and 8RJ45, support 155M SFP |
| YV-3208FE-xx | 10/100M 2Fiber and 8RJ45, 1*9 xx=550~100km |
|
YV-3208FEGE-SFP |
1000M 2SFP and 10/100M 8RJ45, support 155M SFP |
|
YV-3208FEGE-xx |
1000M 2Fiber and 10/100M 8RJ45, 1*9 xx=550~100km |
| YV-3208GE-SFP | 10/100/1000M 2SFP and 8RJ45, support 155M SFP |
| YV-3208FE-SFP | 10/100/1000M 2Fiber and 8RJ45, 1*9 xx=550~100km |

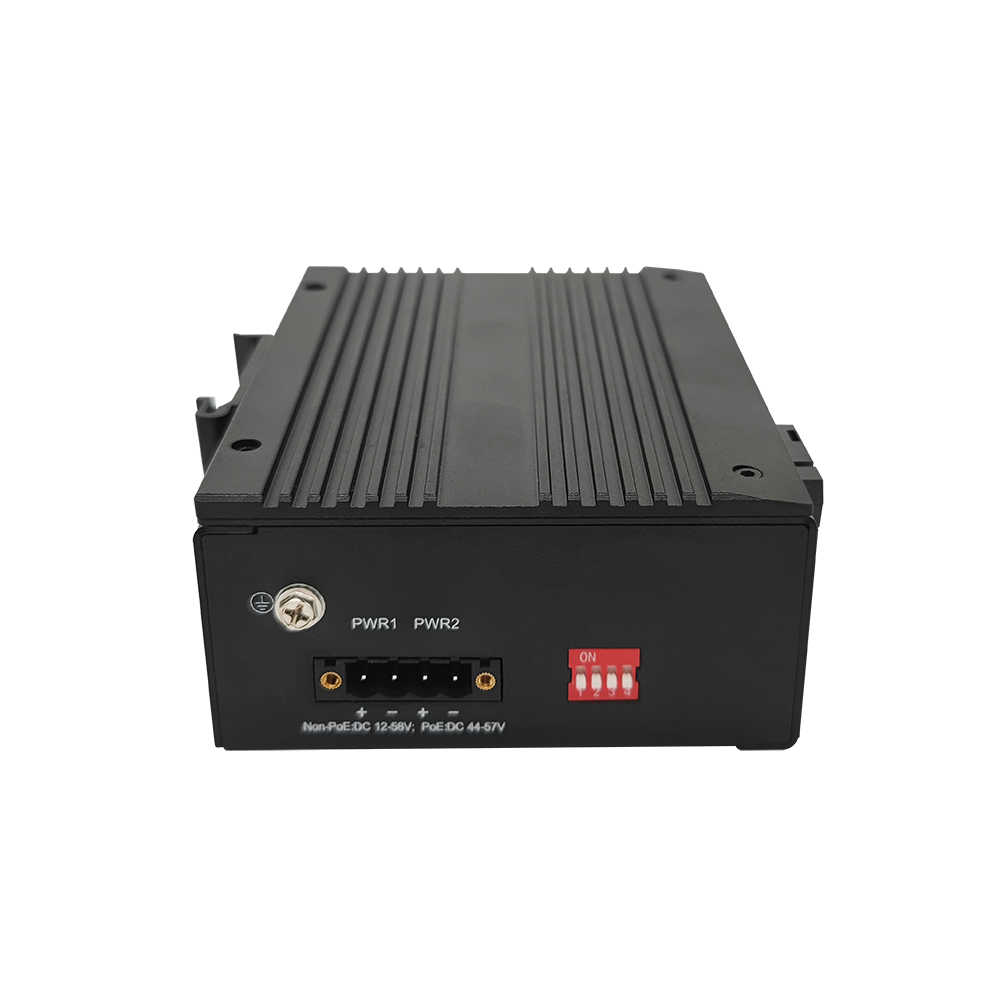

* DC 12~58V input, redundant power supply with polarity reverse/over-voltage protection
* Dip switch function: 1.LFP; 2. Flow control; 3. Broadcast storm restrain; 4.fiber port 100/1000M selection
* Support 10K Bytes Jumbo frame and 1M large buffer
* Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection

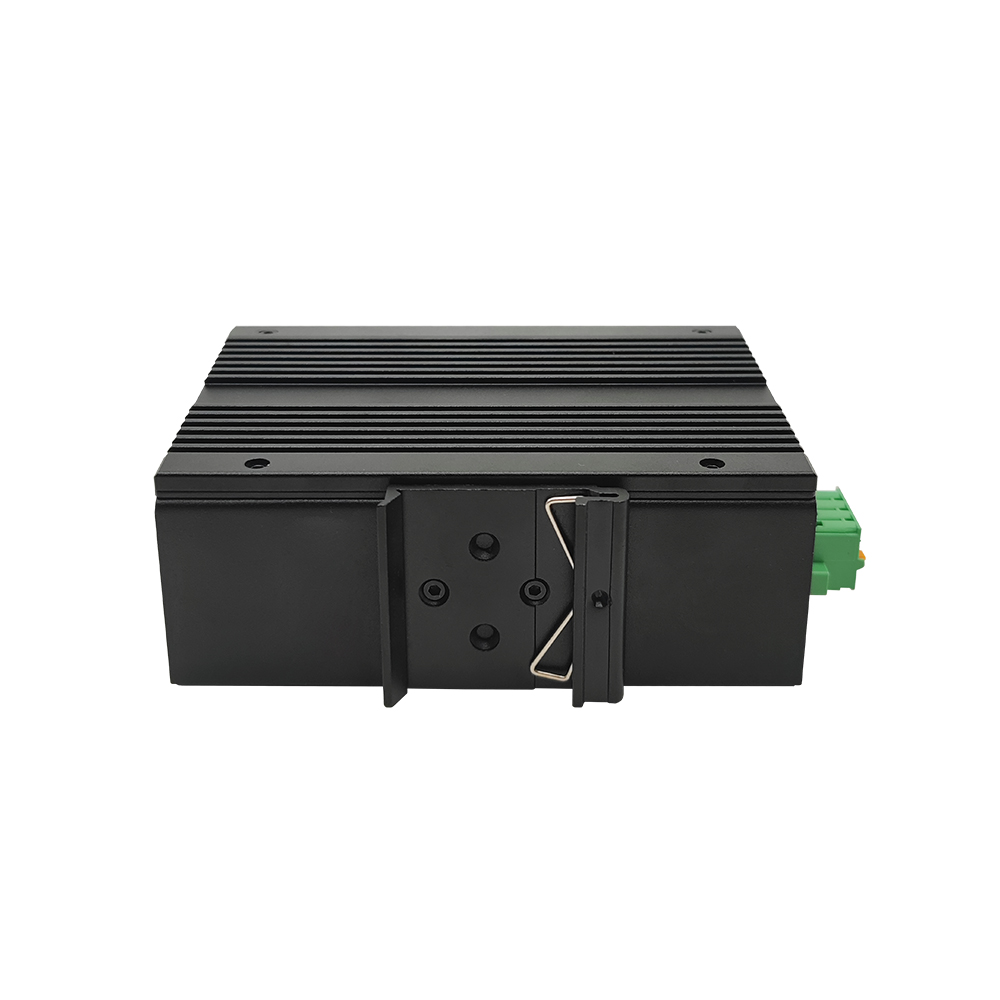

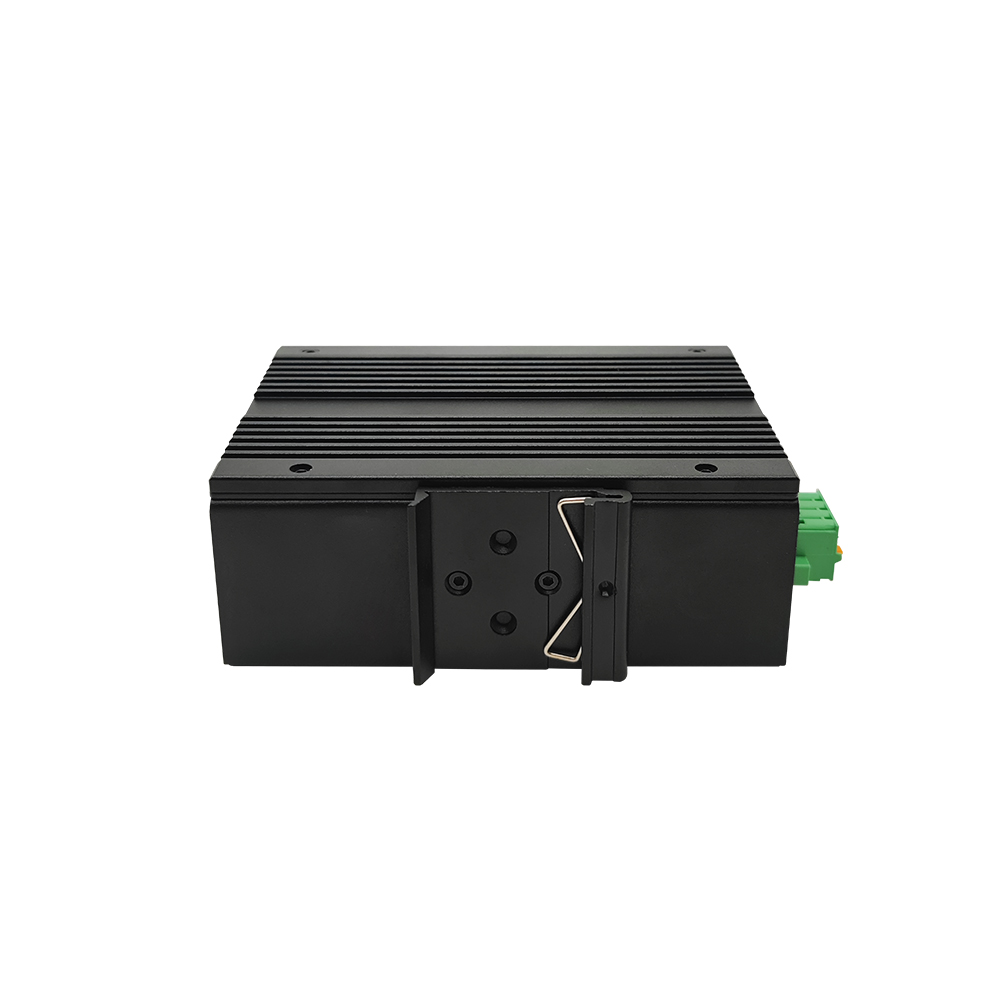

* IP40 fan-less and Din-rail hardware design
* Operation temperature: -40 ℃ ~+75℃
* Dip switch function: 1.LFP; 2. Flow control; 3. Broadcast storm restrain; 4.fiber port 100/1000M selection
* Support 10K Bytes Jumbo frame and 1M large buffer
* Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
* IP40 fan-less and Din-rail hardware design
* Operation temperature: -40 ℃ ~+75℃
