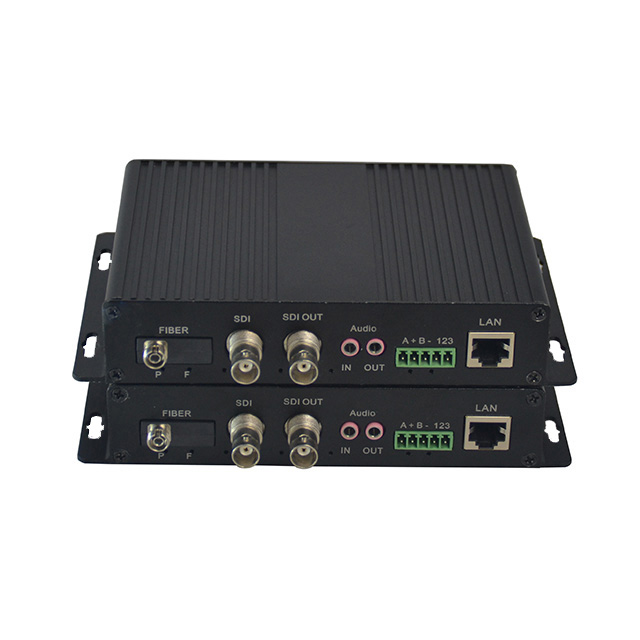

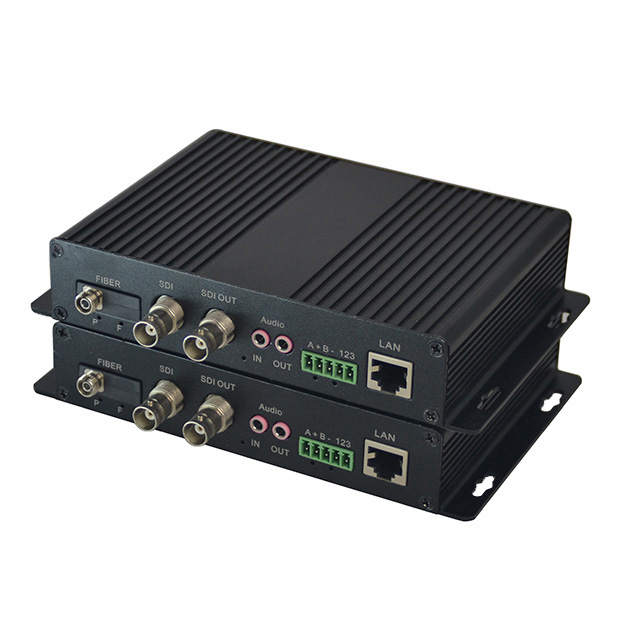

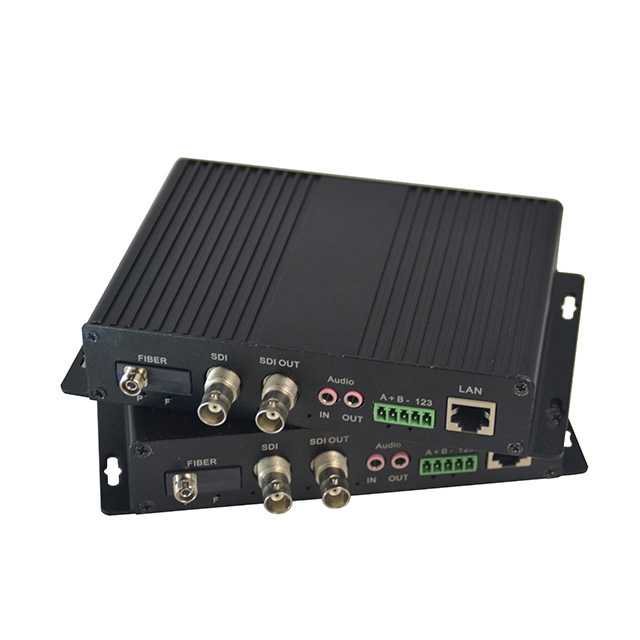

2ch 3G/HD-SDI


The SDI Video Converter can transmit HD/SD/3G-SDI from 19.4Mbps to 3Gbps, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission.

Send Enquiry
  • Order Model
  • Specifications
  •
Part Number Description
YV-HDSDI2V1D↑↓F-T/R 2ch HD-SDI 1.25G+1ch BiDi RS485 Data
YV-HDSDI2V1D↑↓1A↑↓F-T/R 2ch HD-SDI 1.25G+1ch BiDi RS485 Data+1ch BiDi Audio
YV-HDSDI2V1D↑↓1A↑↓1EF-T/R2 ch HD-SDI 1.25G+1ch BiDi RS485 Data+1ch BiDi Audio+1ch 10/100M Ethernet


*2ch HD-SDI video and data over one fiber

*SMPTE 292M (1.485Gb/s or 3Gbps) clock recovery

*Support SMPTE259M,SMPTE297M,SMPTE310,SMPTE305(SDTI)

*Support SDI143 Mbps, 177 Mbps, 270Mbps, 360 Mbps,540Mbps, 1.485Gbit, 2.97Gbit standard

*Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)

*150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A)

*Optional network management system

*LED status indicators monitor the critical parameters

*Optional Network system

*Support hot swap

*Support stand alone type, 1U rack and 4U rack mounted
