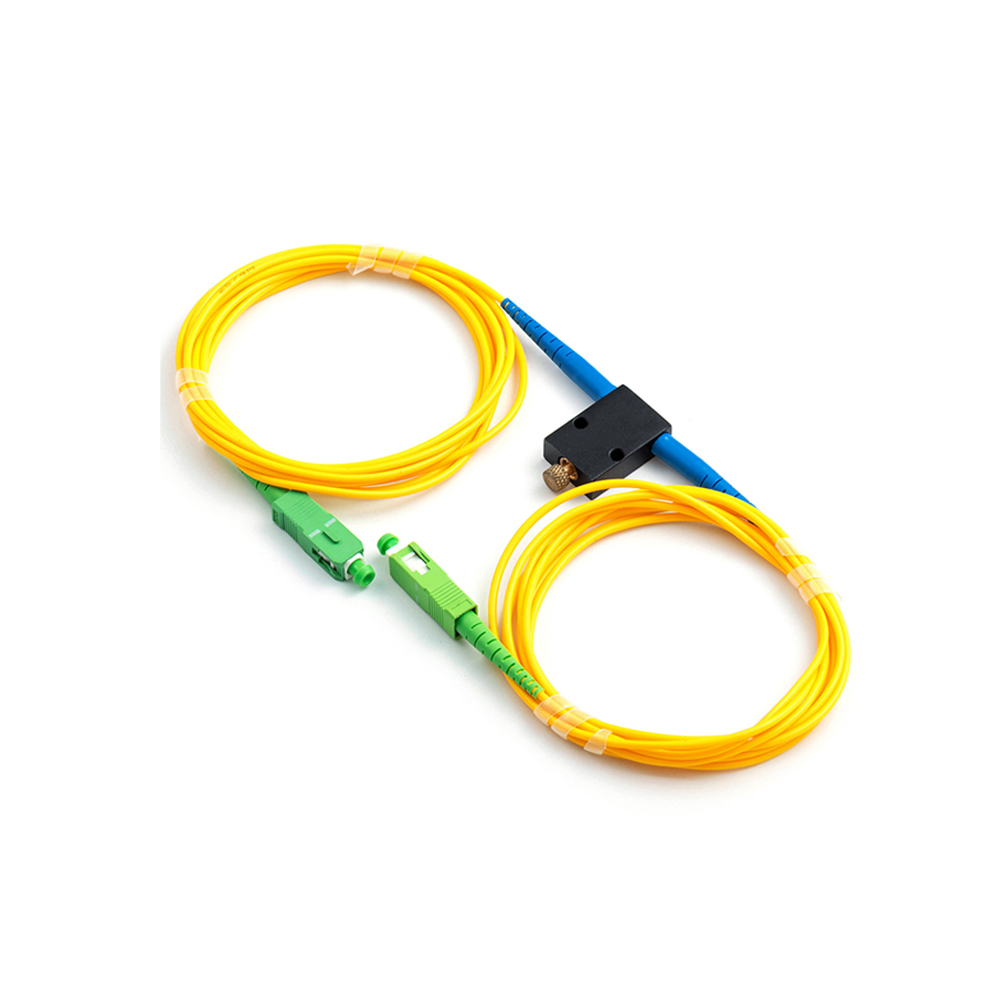

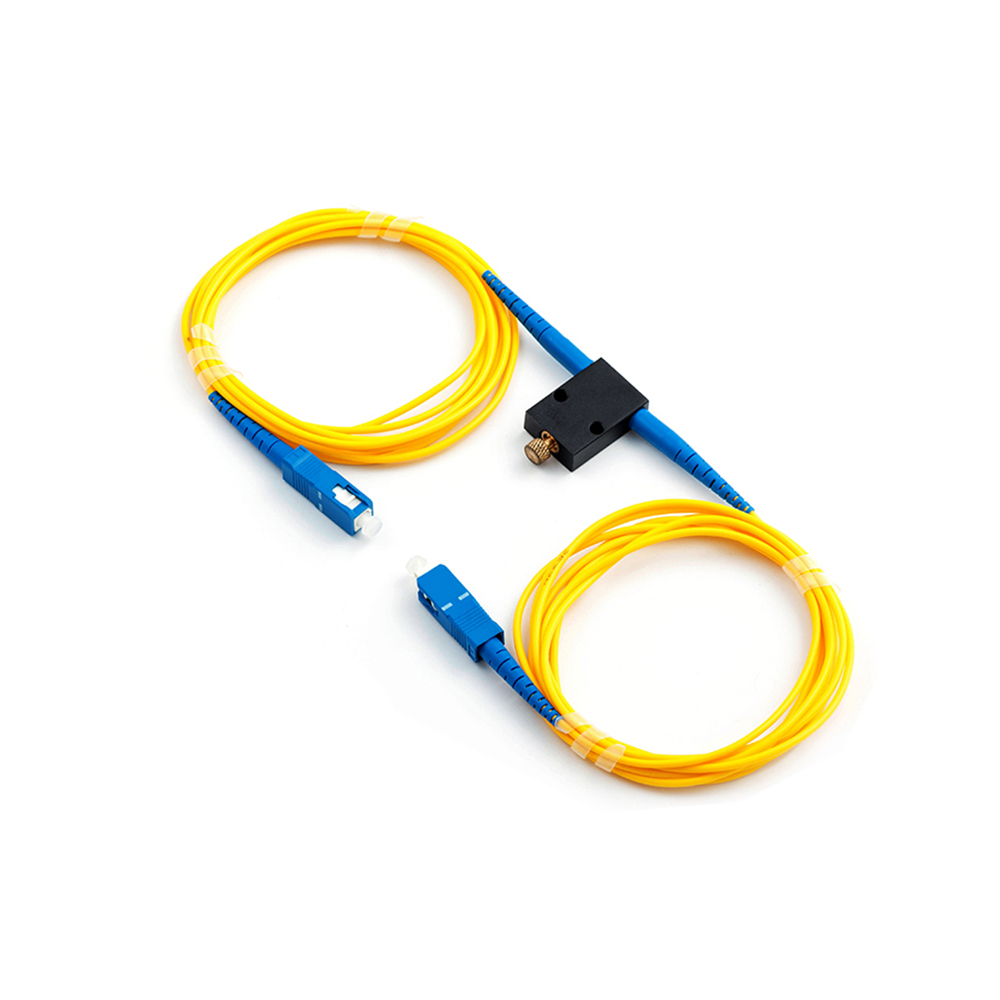

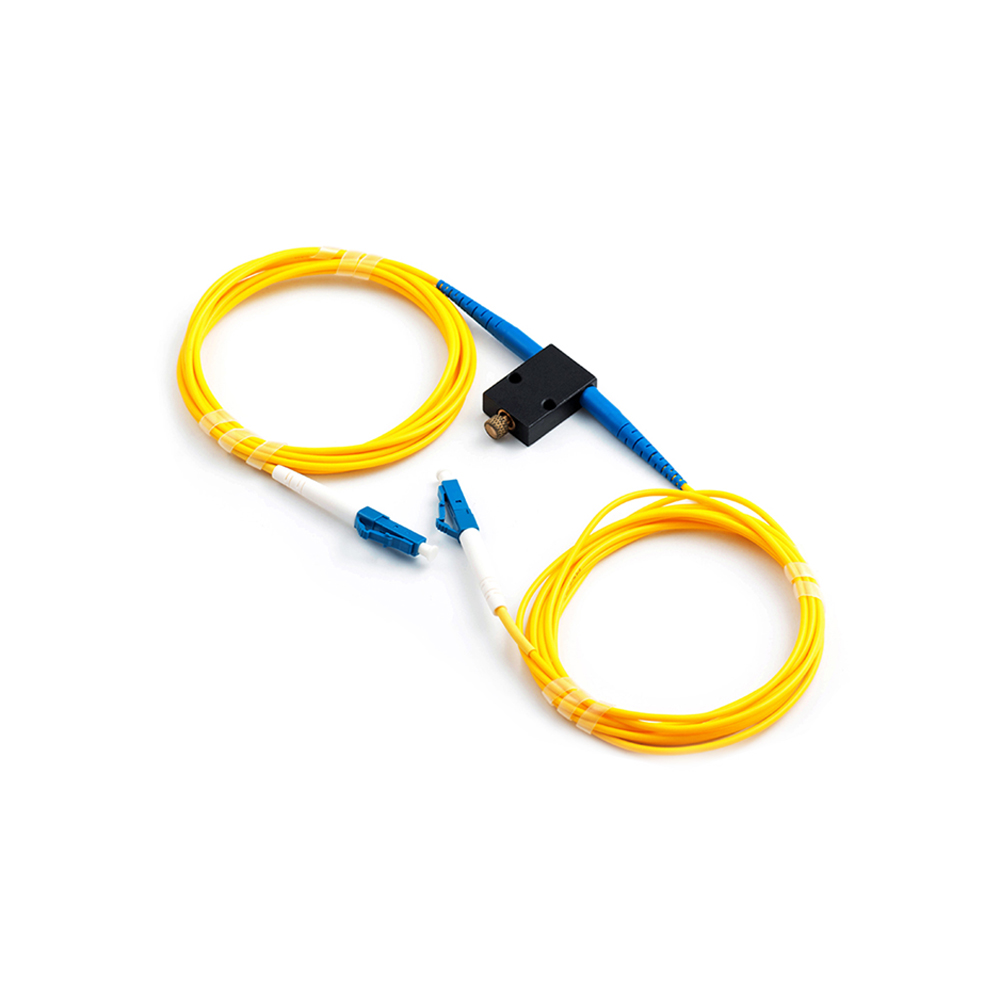

Inline Variable Optical Attenuator VOA Adjustable
Our VOA is one fiber optic attenuator that is available in Single mode ,Multimode 62.5/125 and Multimode 50/125.
It can terminated with many connectors option,

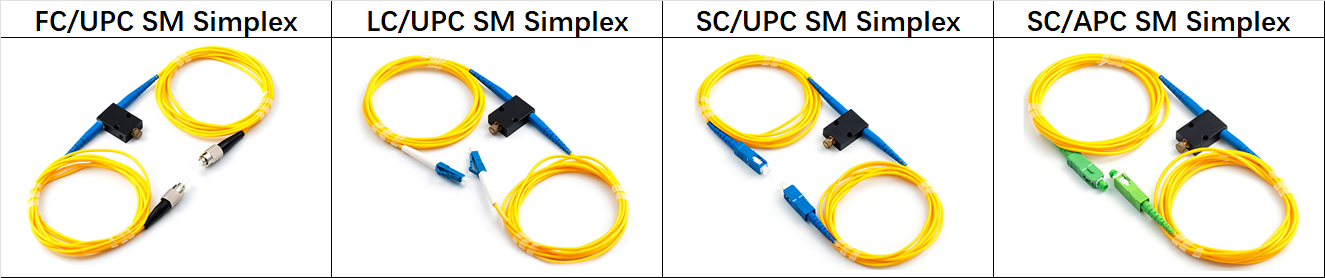

such as SC/UPC,SC/APC,ST/UPC,FC/UPC,FC/APC,LC/UPC,LC/APC.
Variable Optical Attenuator is widely used in optical components power adjustment and system test .
All our Variable Optical Attenuators are manufactured according to industry standards and are 100% fully tested.
Attenuation Range can be 0~60dB or 0~30dB
Operating Wavelength for Singlemode is 1310/1550nm,for Multimode is 850/1310nm
Cable diameter is always 2.0mm
Return Loss: for Singlemode : ≥ 65 (APC) ,≥ 55 (UPC); for Multimode:≥ 65 (APC) ,≥ 50 (UPC)
Storage Temperature range is -40~85°C
Dimension(LxWxH ): 26x8x18mm
