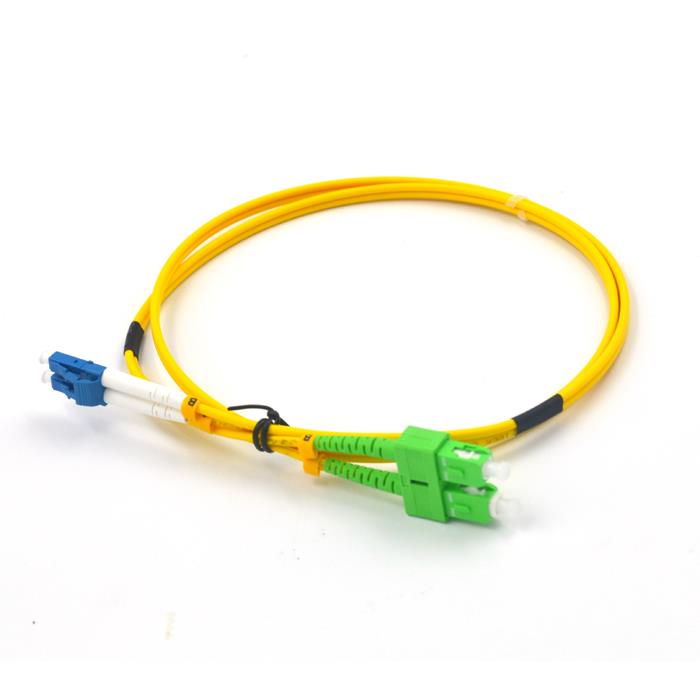

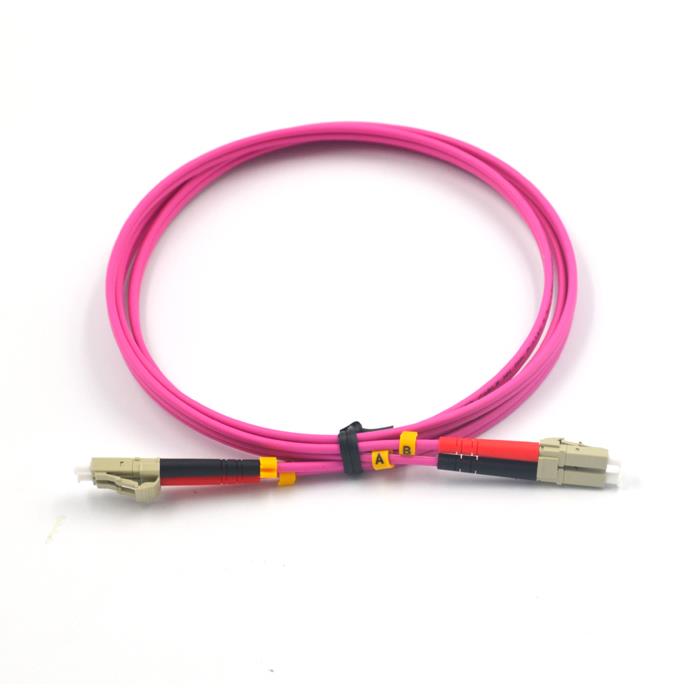

Fiber Patch Cord

OM1/OM2/OM3/OM4
Duplex and Simplex
LC/SC/FC/ST, UPC/APC

Send Enquiry

Order Model
Specifications

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber Type	9/125 SMF-28 or equivalent (Single mode) OS1 50/125, 62.5/125 (Multi-mode) OM2&OM1 50/125, 10G (Multi-mode) OM3
Cable Type	Simplex, Duplex (Zip-cord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Single mode Master) ≤ 0.25dB (For Single mode Standard) ≤ 0.25dB (For Multi-mode) Tested by JDS RM 3750
Return Loss (For Single mode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatablity	±0.1dB
Operating temperature	-40C to 85C
Geometry Requirement (For Single mode)	Ferrule End-face Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30μm (For Master) Apex Offset ≤ 50μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

*Fiber type:9/125um(SM),50/125um(MM),62.5/125um(MM),OM3,OM4 *End-face type: PC, APC,UPC
*Cable number:duplex,simplex
*Cable diameter:0.9mm,2.0mm,3.0mm.1.6mm.1.8mm.2.4mm.2.8mm......
*Cable length: customized
*Cable material: PVC,LSZH,OFNR,OFNP
