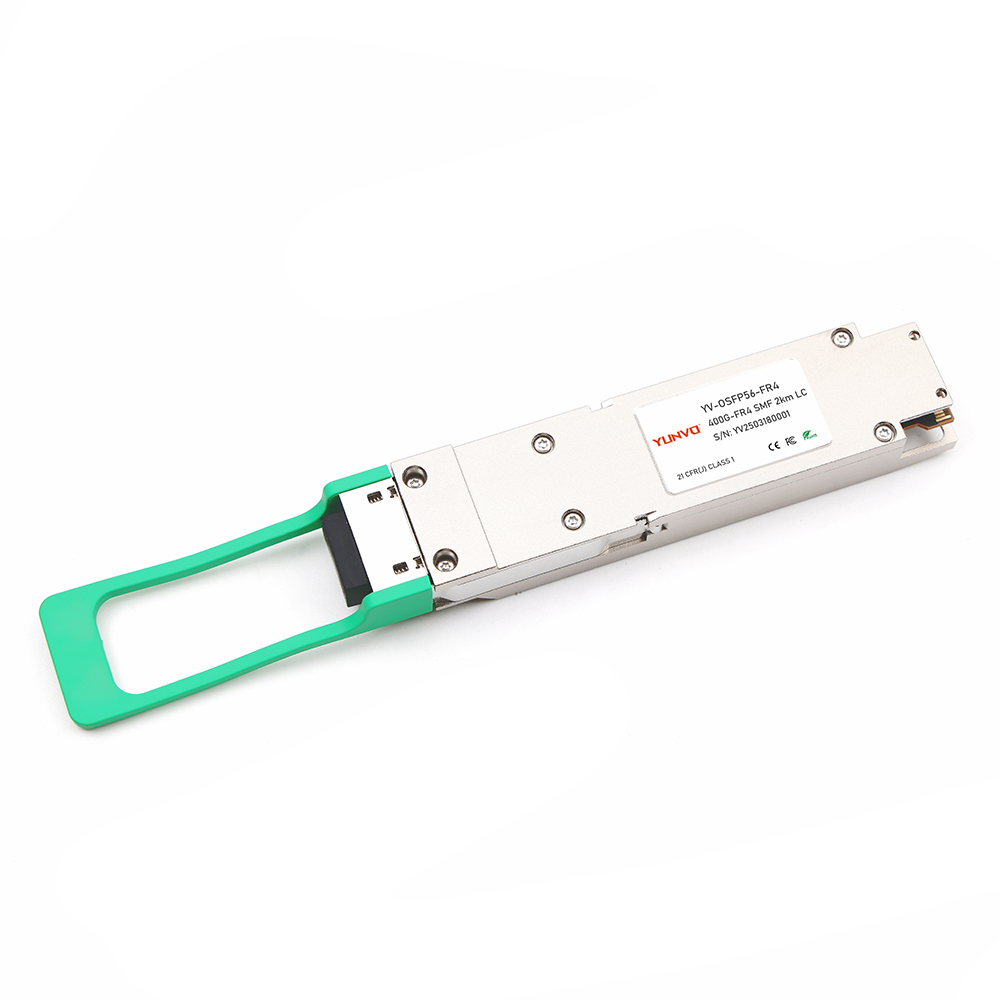

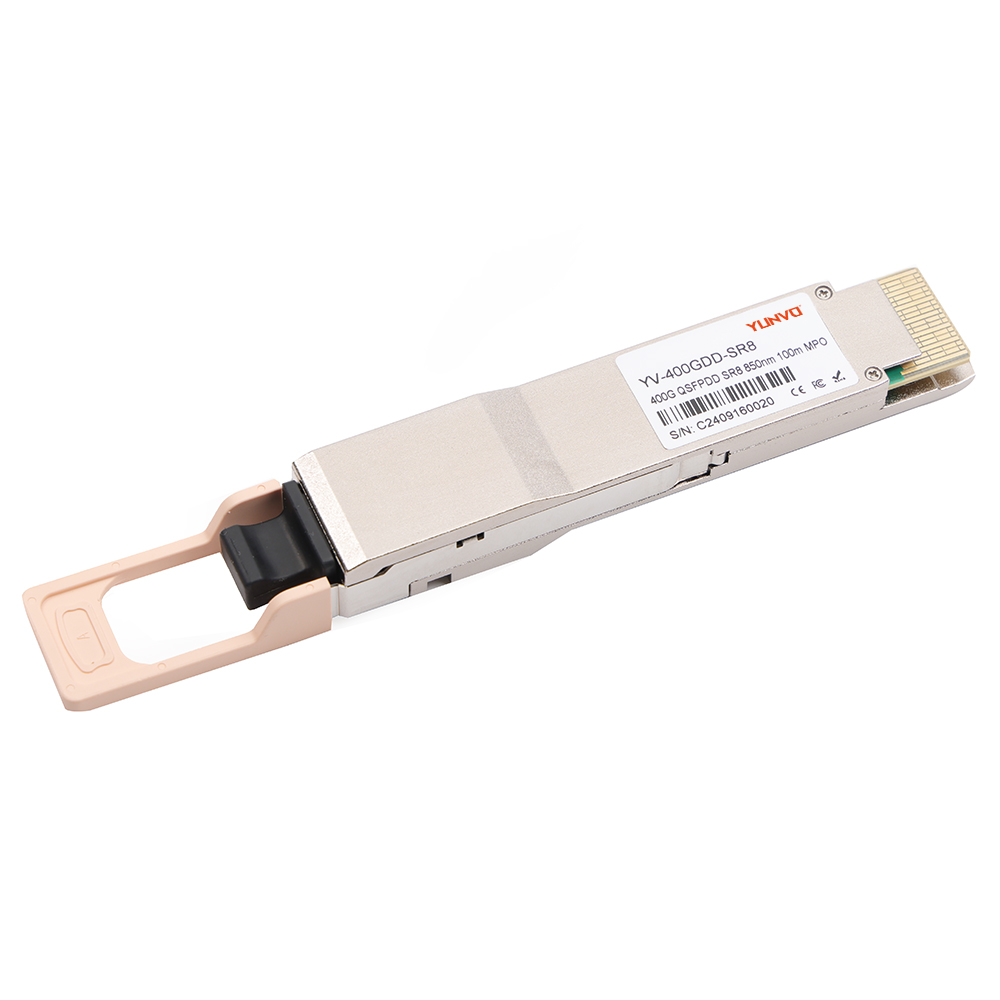

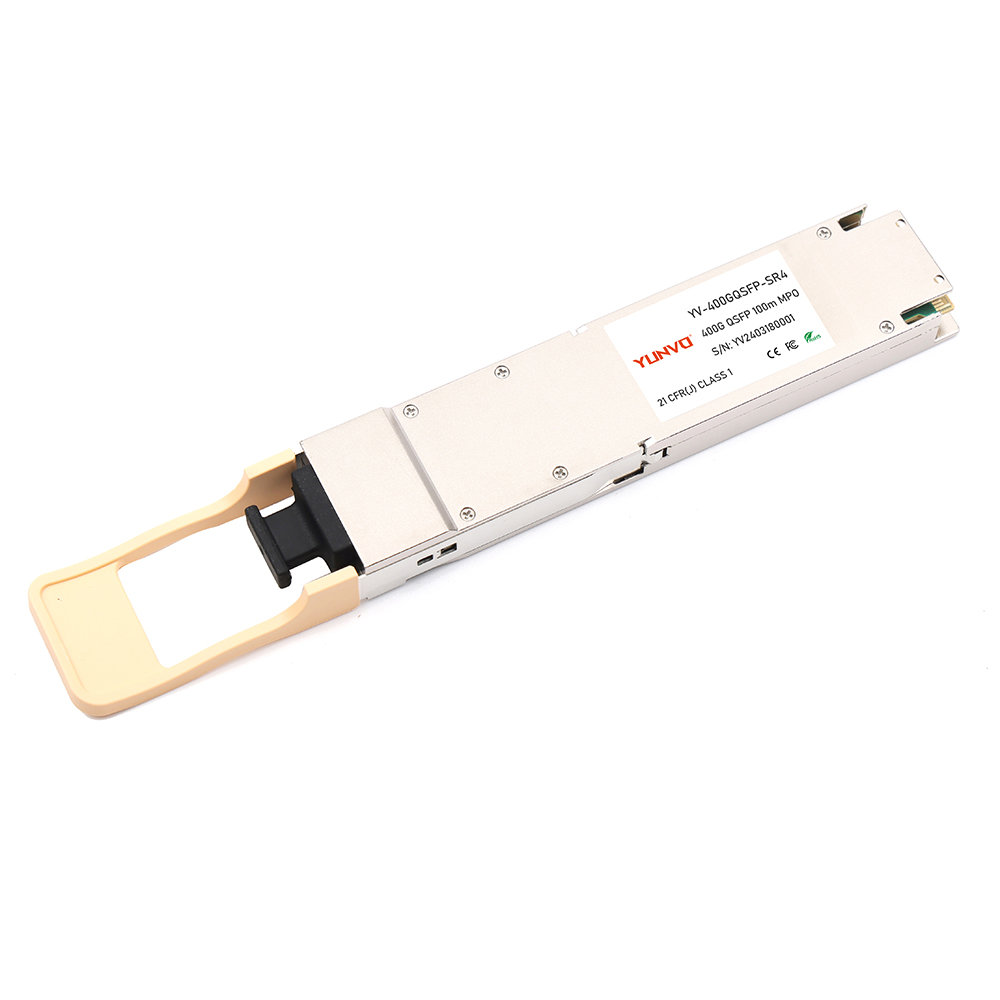

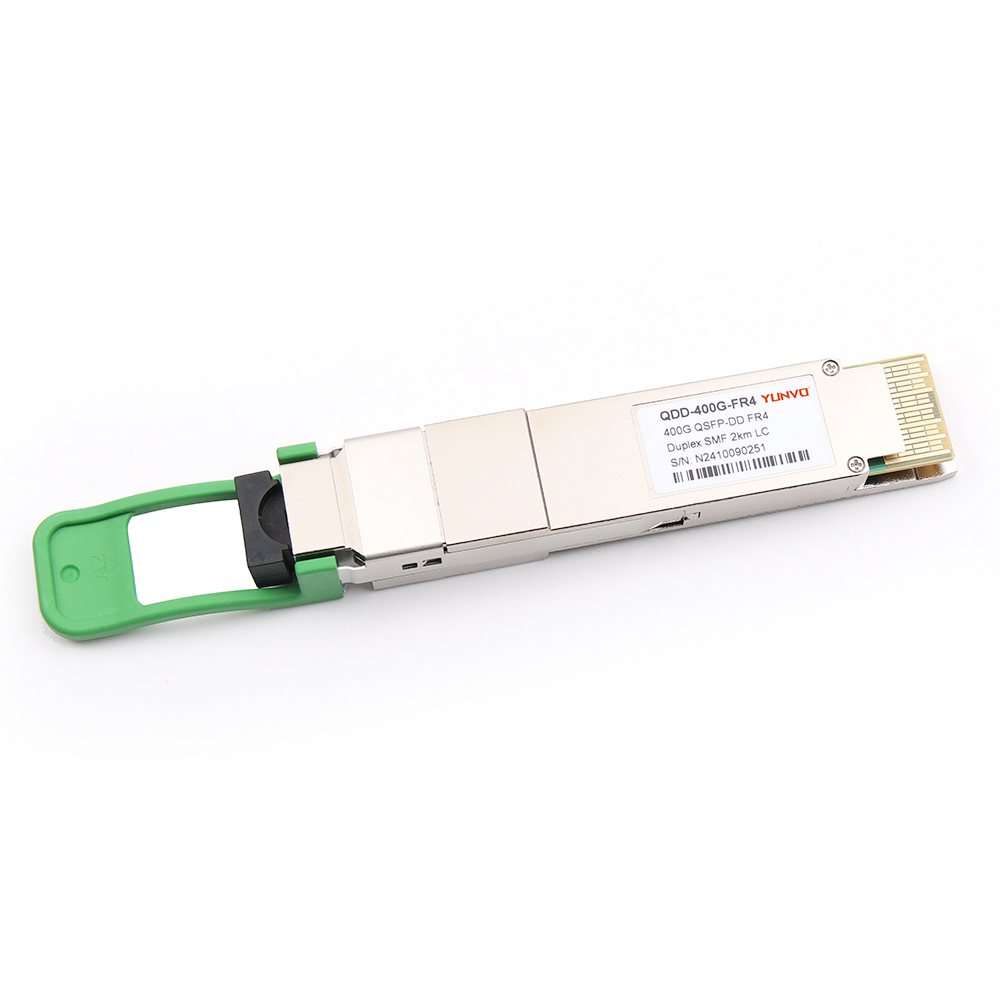

400G Series

400G series is a hot-pluggable optical transceiver,It meets the standard of QSFP-DD/OSFP/QSFP112/QSFP56 MSA,offers customers a wide variety of super high-density transceiver modules and the flexibility of 400 Gigabit Ethernet connectivity options for data center, high- performance computing networks, enterprise core and distribution layers, and service provider applications.

Send Enquiry

Order Model
Specifications

P/N	Data Rate	Reach	Tx	Rx	Interface
YV-400GQDD-DR4	400G	500m	1310nm EML	PIN	MPO-12
YV-400GQDD-DR4+	400G	2km	1310nm EML	PIN	MPO-12
YV-400GQDD-FR4	400G	2km	CWDM EML	PIN	Dual LC
YV-400GQDD-LR4	400G	10km	LWDM EML	PIN	Dual LC
YV-400GQDD-SR8	400G	100m	850nm VCSEL	PIN	MPO-16
YV-400GQDD-LR8	400G	10km	LWDM EML	PIN	Dual LC
YV-400GQDD-ER8	400G	40km	LWDM EML	APD	Dual LC
YV-400GOSFP-SR4	400G	100m	850nm VCSEL	PIN	MPO-12
YV-400GOSFP-VR4	400G	50m	850nm VCSEL	PD	MPO-12
YV-400GOSFP-SR8	400G	100m	850nm VCSEL	PIN	MPO-16
YV-400GOSFP-DR4	400G	500m	1310nm EML	PIN	MPO-12
YV-400GOSFP-DR4+	400G	2km	1310nm EML	PIN	MPO-12
YV-400GOSFP-DR4++	400G	10km	1310nm EML	PIN	MPO-12
YV-400GQSFP112-SR4	400G	100m	850nm VCSEL	PIN	MPO-12
YV-400GQSFP112-VR4	400G	50m	850nm VCSEL	PD	MPO-12
YV-400GQSFP112-DR4	400G	500m	1310nm EML	PIN	MPO-12
YV-400GQSFP112-FR4	400G	2km	CWDM EML	PIN	Dual LC
YV-400GQSFP112-LR4	400G	10km	LWDM EML	PIN	Dual LC
YV-400G-QSFP56-DD-SR8	400G	100m	850nm VCSEL	PIN	MPO-16
YV-400G-QSFP56-DD-DR4	400G	500m	1310nm EML	PIN	MPO-12
YV-400G-QSFP56-DD-DR4+	400G	2km	1310nm EML	PIN	MPO-12
YV-400G-QSFP56-DD-DR4++	400G	10km	1310nm EML	PIN	MPO-12
YV-400G-QSFP56-DD-FR4	400G	2km	CWDM EML	PIN	Dual LC
YV-400G-QSFP56-DD-LR4	400G	10km	CWDM EML	PIN	Dual LC

* UP to 425Gb/s bit rates
* Hot pluggable QSFP-DD/SFP/QSFP112/QSFP56 MSA form package
* +3.3V power supply
* RoHS compliance
* I2C management interface
* Low power consumption
* Operating temperature range: 0~70°C(Commercial)
