| P/N | Description |

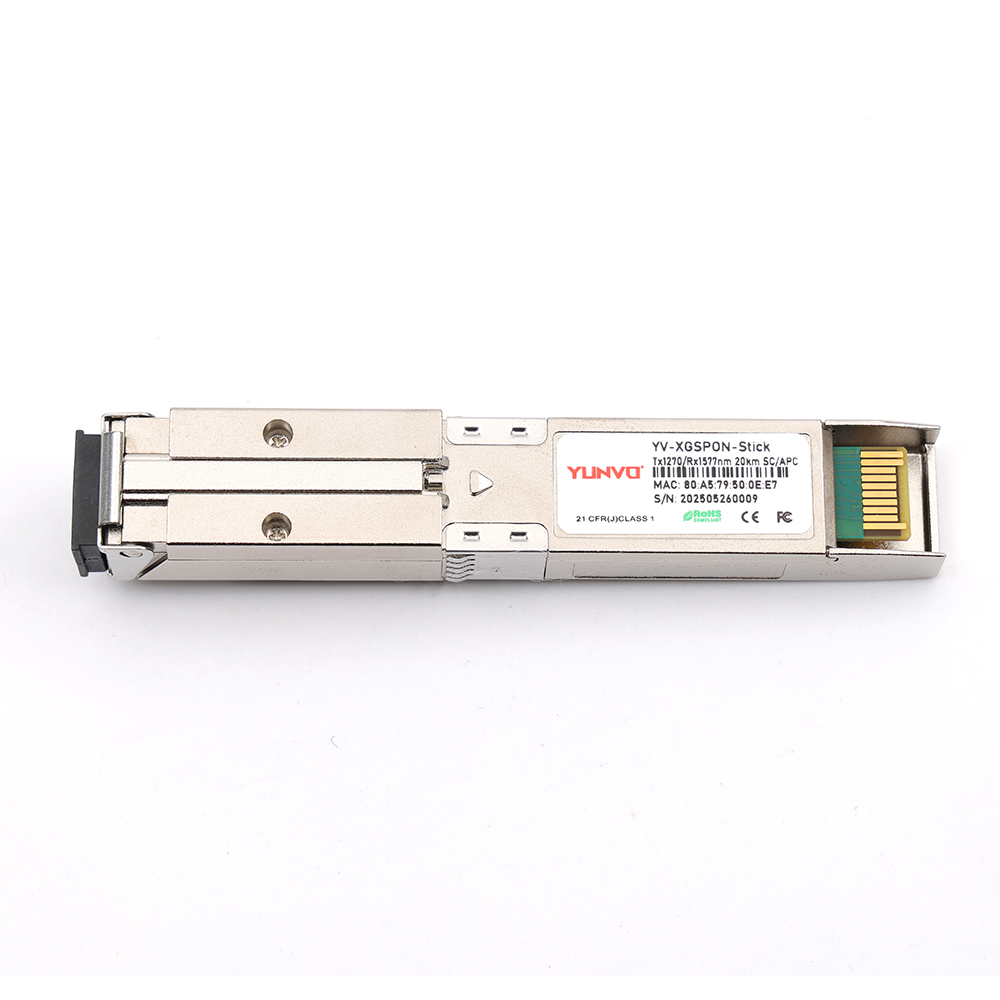

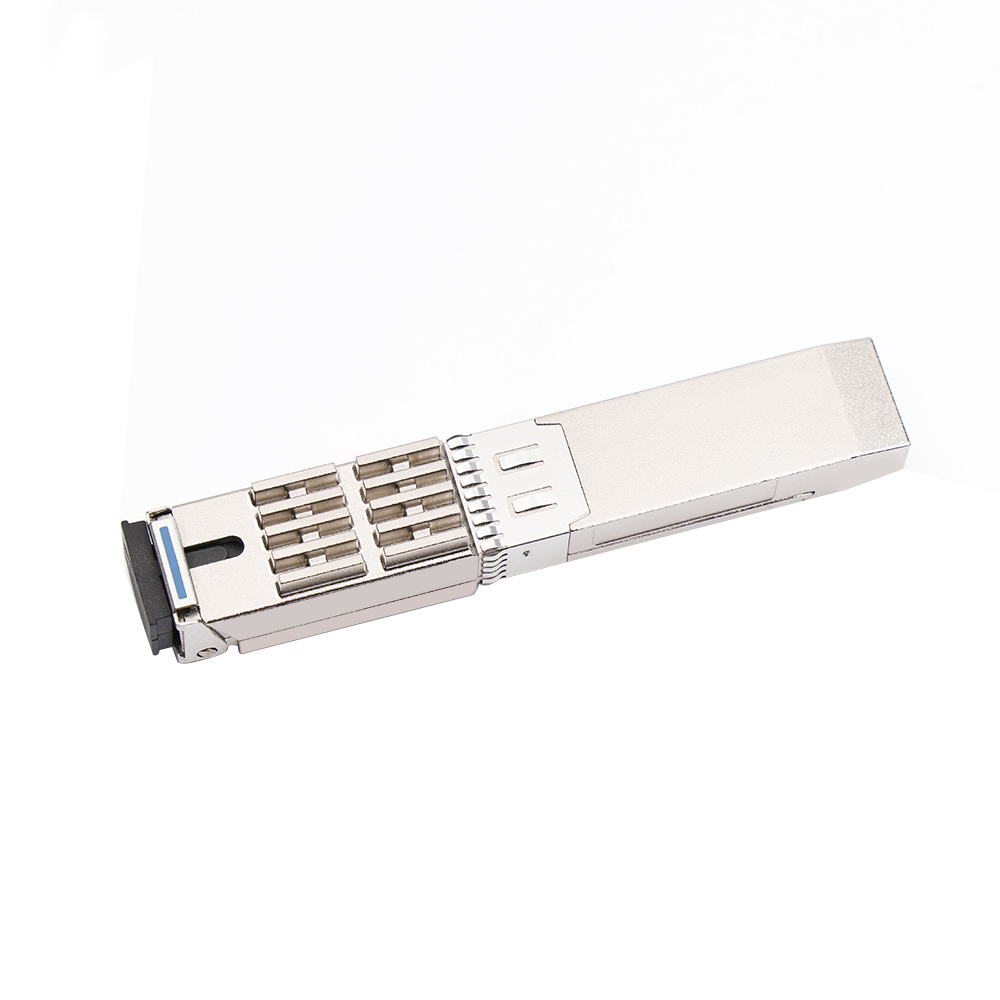

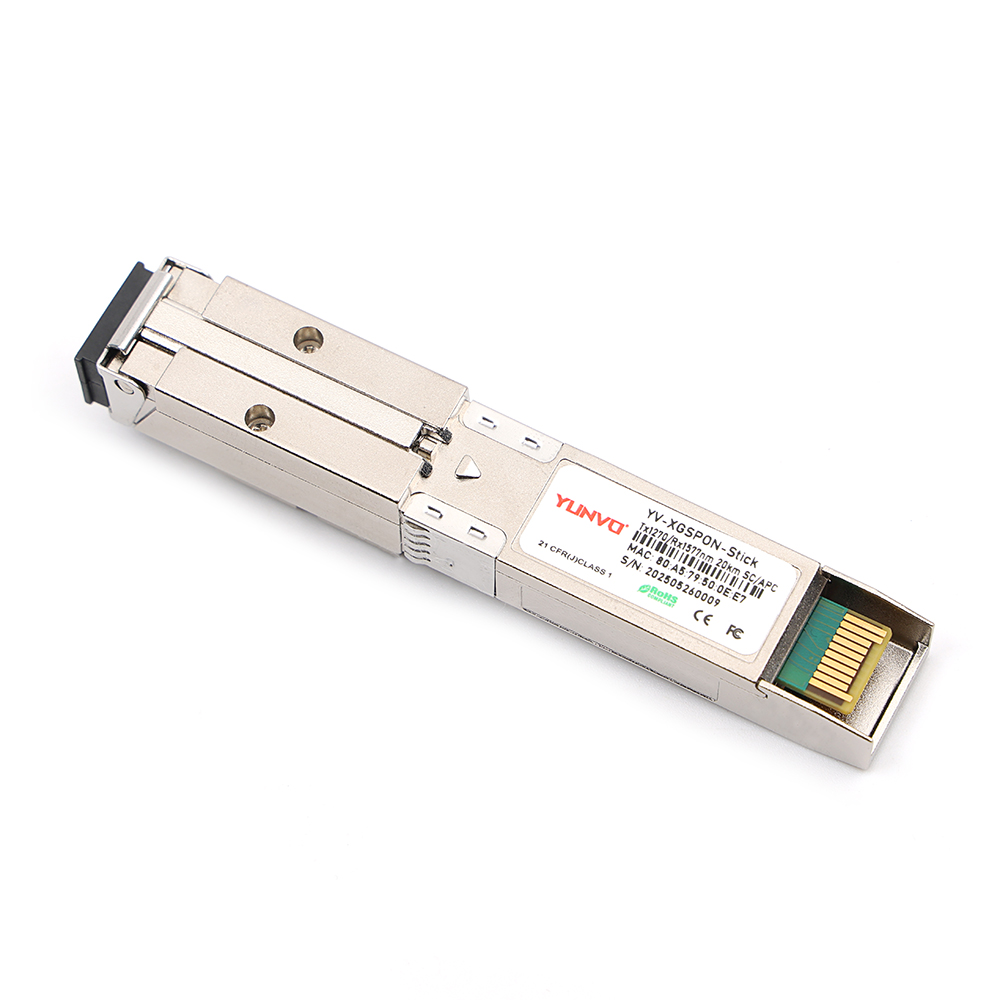

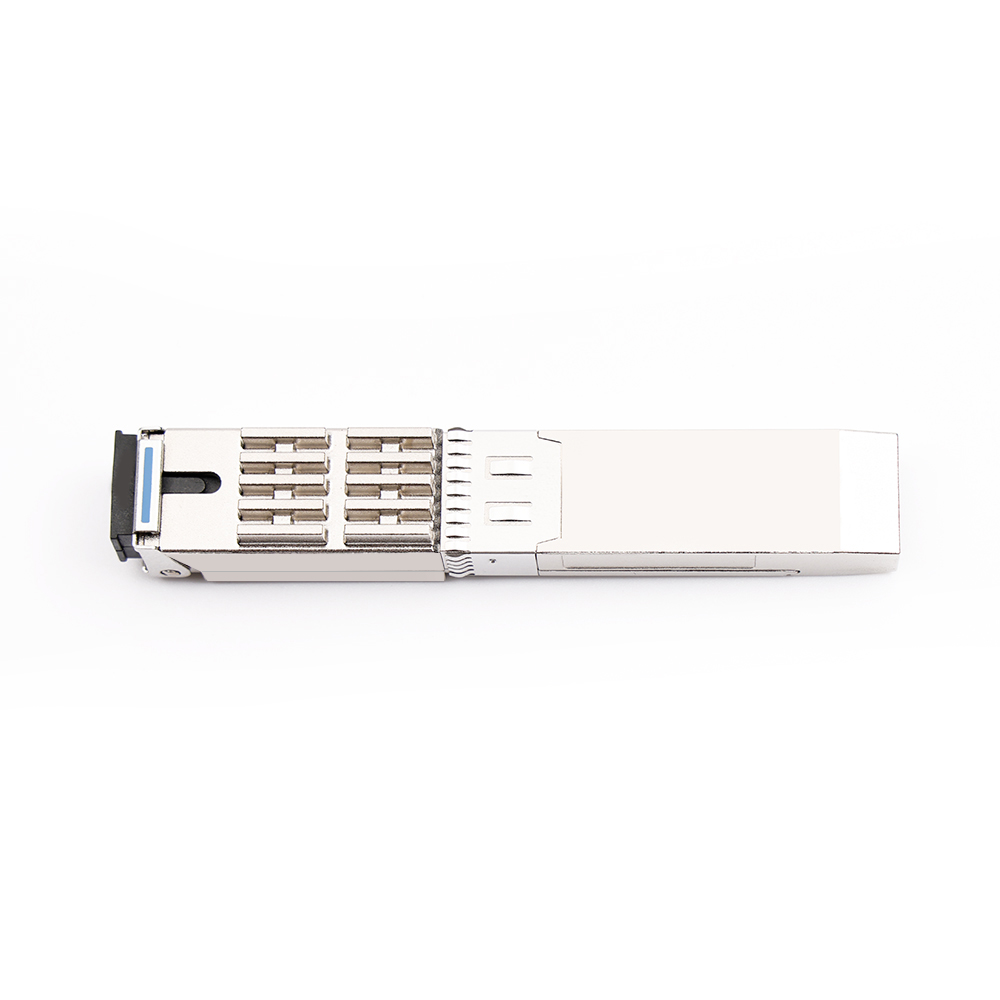

| YV-XGSPON-Stick-SC/APC | 10G Tx1270/Rx1577nm 20km SC/APC XGSPON ONU Stick |
|
YV-XGSPON-Stick-SC/UPC |
10G Tx1270/Rx1577nm 20km SC/UPC XGSPON ONU Stick |
Single fiber bi-directional data links symmetric TX 9.953 Gb/s / RX 9.953 Gb/s with MAC function
SFP package with SC/APC receptacle
Single 3.3 V power supply
Hot-pluggable capability
High power 1270 nm DML DFB LD and high sensitivity 1577 nm APD
Support 20 km transmission distance with SMF
CML compatible data input/output interface
Low power dissipation < 2.5 W
Low EMI and excellent ESD protection
Digital diagnostic monitor interface
RoHS-6 compliance
Case temperature range: Commercial: 0 °C to 70 °C
Support of GPON/XGS-PON/NGPON2 standards
256 GEM/XGEM ports, 64 T-CONTs or 16 LLIDs
Carrier Grade QoS Engine
Advanced loopback and diagnostic capabilities
Supports Synchronous Ethernet (SyncE)
