| P/N | Data Rate | Reach | Tx | Rx | Interface |
| YV-800GQDD-2xSR4 | 800G | 100M | 850nm VCSEL | PIN | 2xMPO-12 APC |
|
YV-800GQDD-2xVR4 |
800G |
50M |
850nm VCSEL |
PIN |
2xMPO-12 APC |
|
YV-800GQDD-2xDR4 |
800G |
500M |
1310nm EML |
PIN |
2xMPO-12 APC |
|
YV-800GQDD-2xFR4 |
800G |
2KM |
1310nm EML |
PIN |
Dual LC |
|
YV-800GQDD-SR8 |
800G |
100M | 850nm VCSEL | PIN |
MPO-16 APC |
|
YV-800GOSFP-VR8 |
800G |
50M |
850nm VCSEL |
PIN |
MPO-16 APC |
|
YV-800GQDD-DR8 |
800G |
500M | 1310nm EML | SiFotonics PD array | MPO-16 APC |

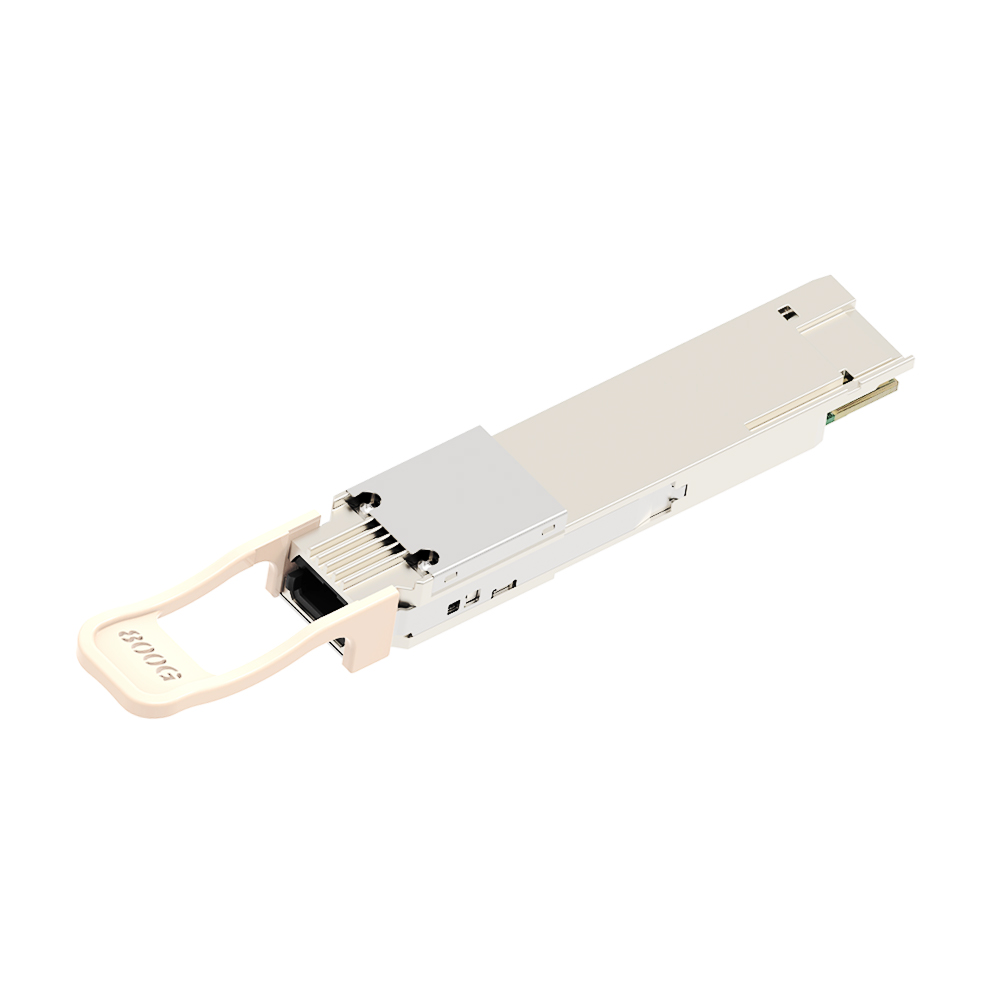

The 800G transceiver can convert 8-channel 106.25Gb/s electrical data to 8-channel 106.25Gb/s optical signals. Similarly, it optically converts 8-channel 106.25Gb/s optical signals to 8-channel electrical data output on the receiver side. It has been designed to withstand the maximum range of external operating conditions including temperature, humidity and EMI. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
