| P/N | Description |

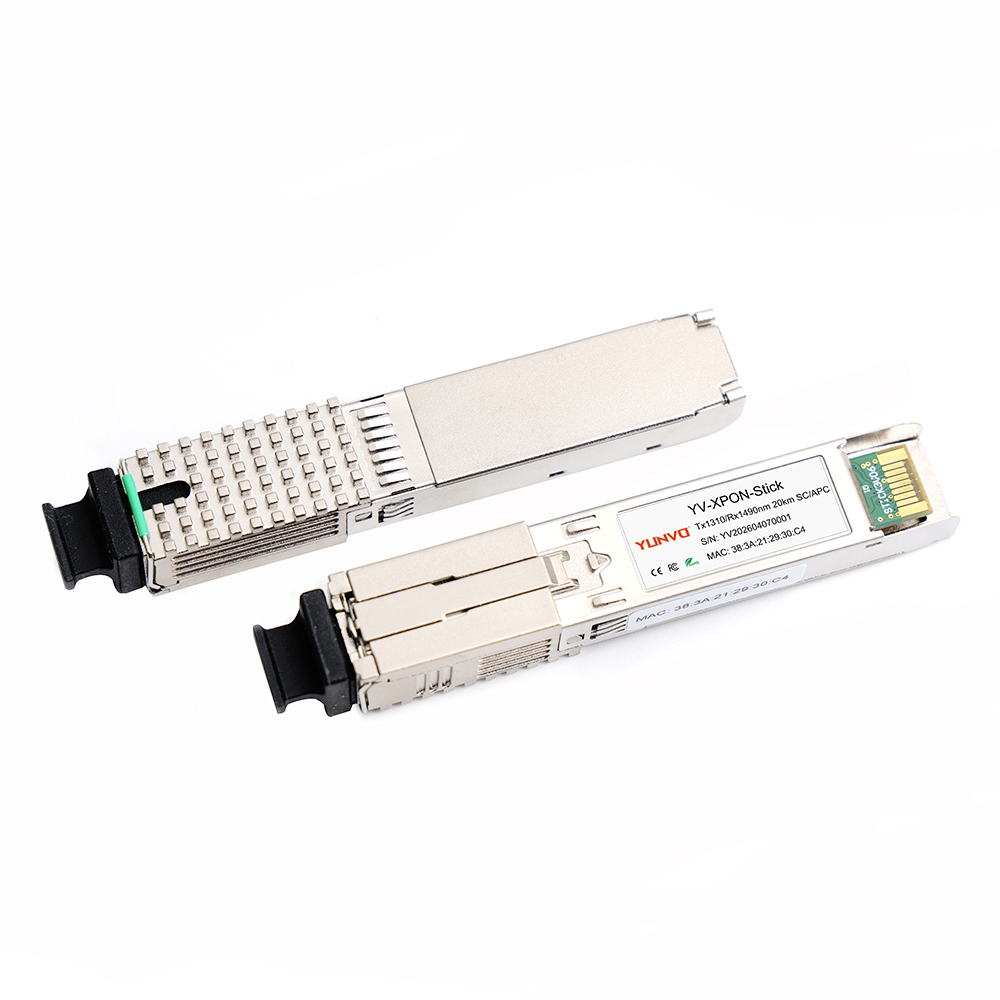

| YV-XPON-Stick-SC/APC2 | 2.5G Tx1310/Rx1490nm 20km SC/APC XPON ONU Stick |
|
YV-XPON-Stick-SC/UPC |
2.5G Tx1310/Rx1490nm 20km SC/UPC XPON ONU Stick |
> Single fiber bi-directional data links GPON ONU and EPON ONU application with XPON MAC
> SC/UPC receptacle SFP with PON ONU MAC inside, “Plug-and-play” via auto-discovery and configuration
> 1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver
> Single 3.3V power supply
> Digital diagnostic monitor interface compatible with SFF-8472
> SFP MSA compliance
> Low EMI and excellent ESD protection
> Class I laser safety standard IEC-60825 compliant
> RoHS compliance
> XPON stick compatible with GPON and EPON system
> Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
> Complies with ITUT-T G.984.2, G.984.2 Amendment 1
> Complies with ITUT G.988 ONU management and control interface (OMCI) specification
> Complies with IEEE802.3AH
> Complies with SGMII and 1000BASE-X
