Channel Spacing |
Channel Wavelength |
Fiber type |
Pigtail Type |
Fiber length |
Connector |
|
50=50G 100=100G 200=200G |
O:1260~1360nm E+S:1360~1530nm C:1530~1565nm L:1565~1625
C20= 1561.42 nm |
1-G652D 2-G657A 3-Other |
A—Bare fiber B—900um loose tube C—900um tight tube D—2.0mm loose tube E—3.0mm loose tube |
00—Other 05—0.5m 10—1m 15—1.5m 20—2 m |
1—FC/PC 2—FC/APC 3—SC/PC 4—SC/APC 5—LC/PC 6—LC/APC 7—Other |
CWDM MUX DEMUX
Coarse wavelength division multiplexer (4, 8, 16 channels)
● Low insertion loss
● Broadband
● High isolation level
● High stability and reliability
● No adhesive is used in the optical path
Product Application
●Line Monitoring
●Wavelength Division Multiplexing System
●Cable television network
● fibre amplifier
● access network

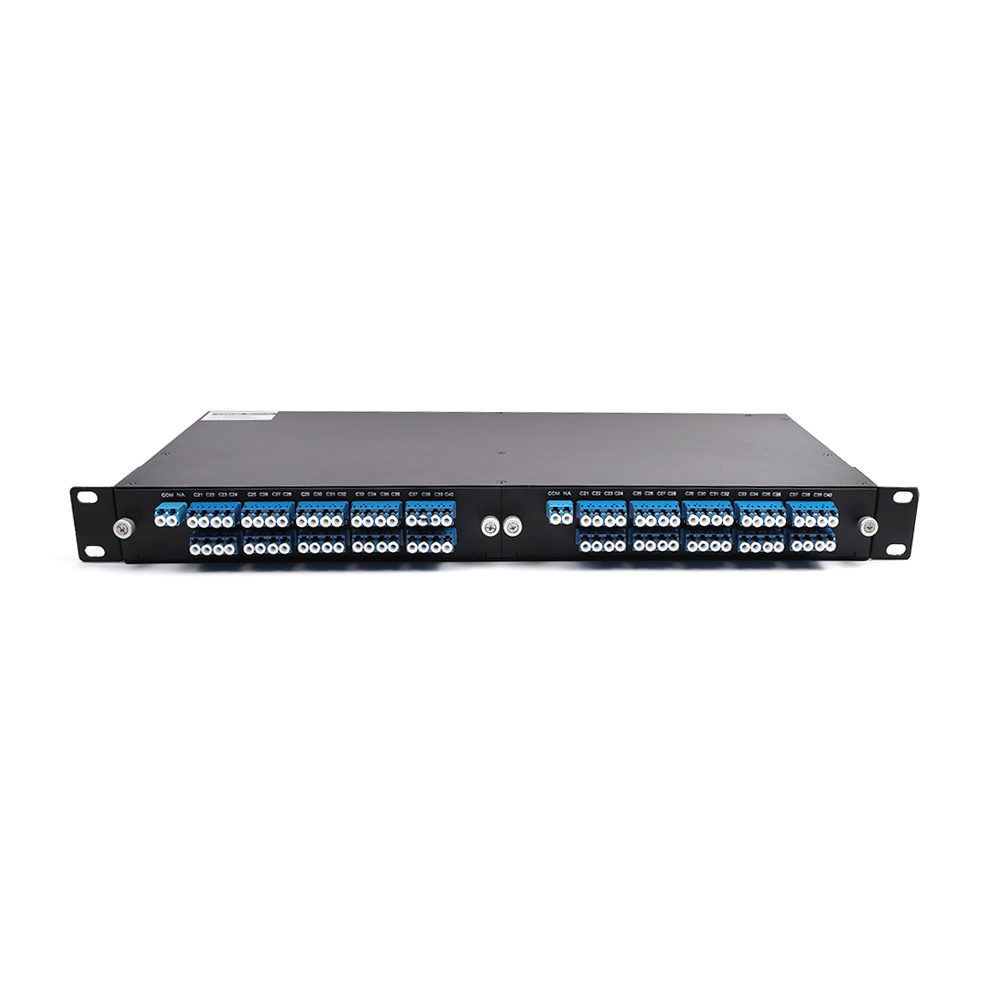

DWDM MUX DEMUX
100GHz Tight Wave Division Multiplexer (4, 8, 16 channels)
● Broadband
● No adhesive is used in the optical path
● High isolation level
● Low insertion loss
● High performance and reliability
Product Application
● fibre amplifier
● CATV Fiber Optic System
●Upload or download business files
●DWDM Network System
