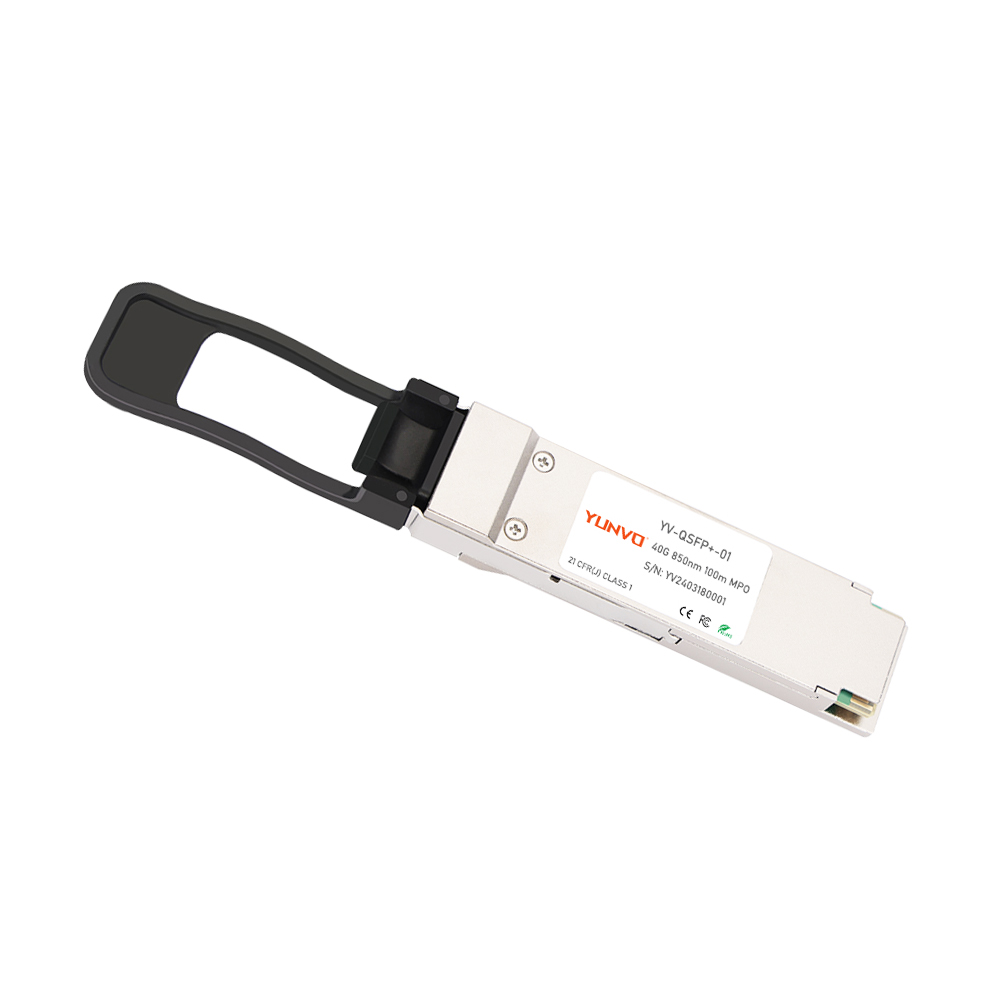

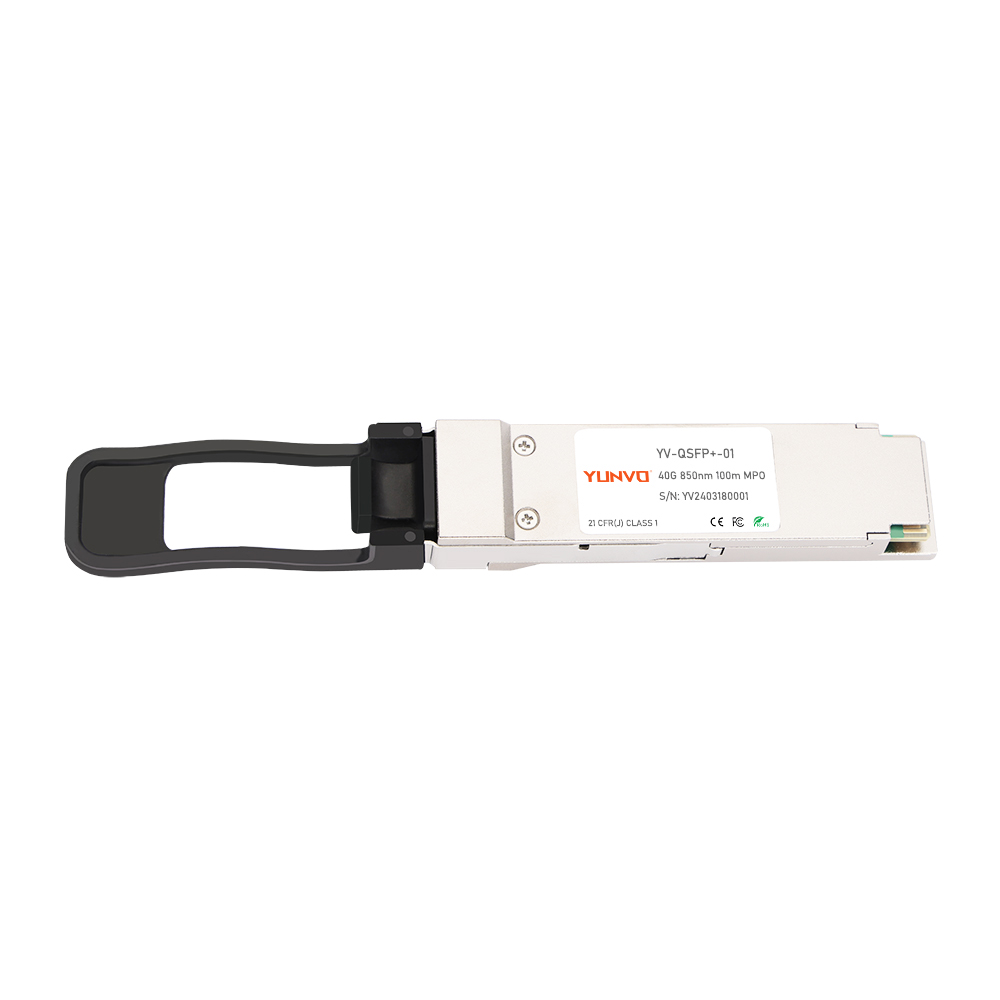

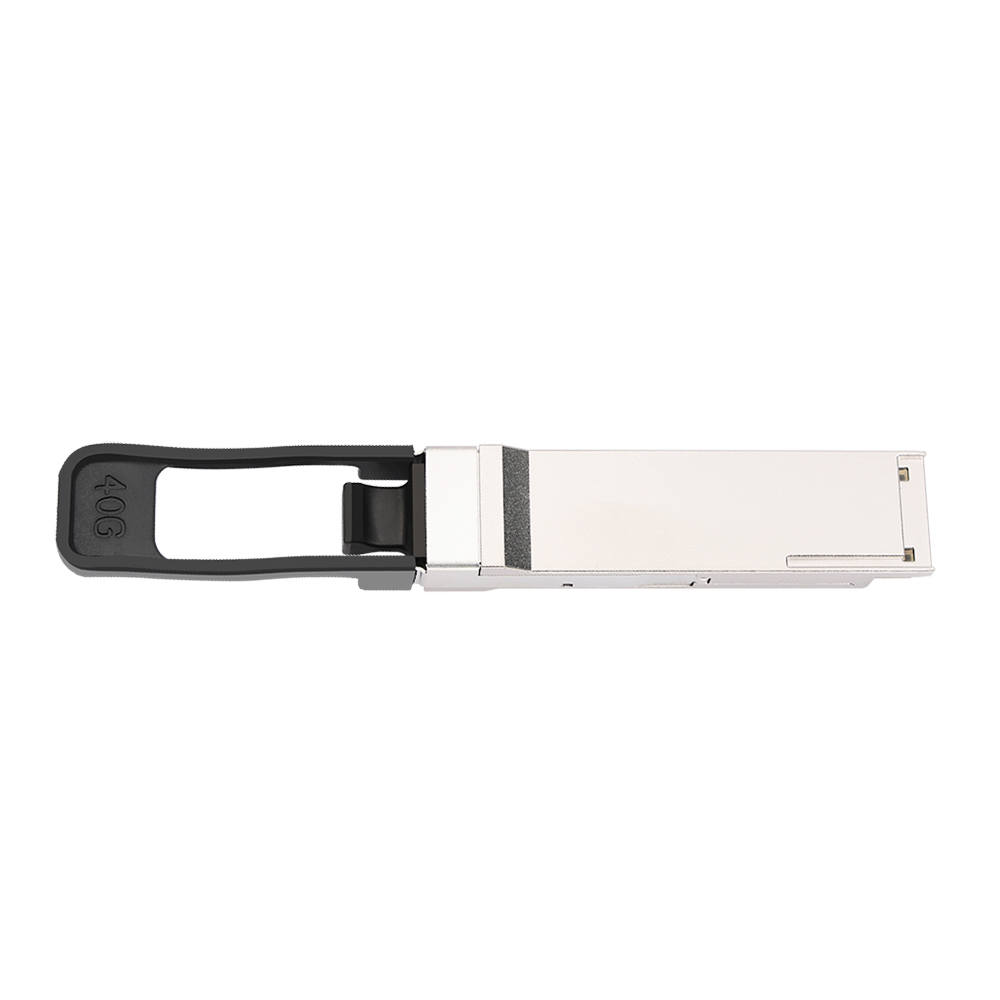

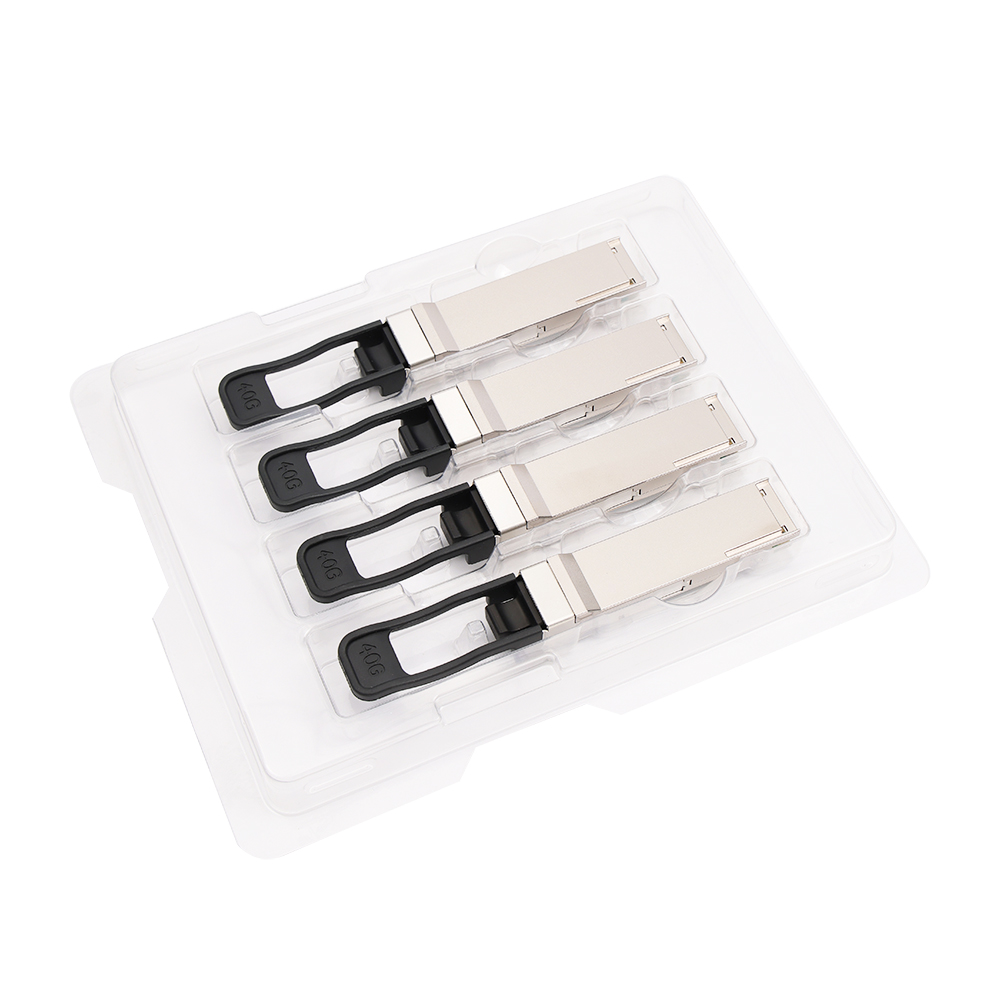

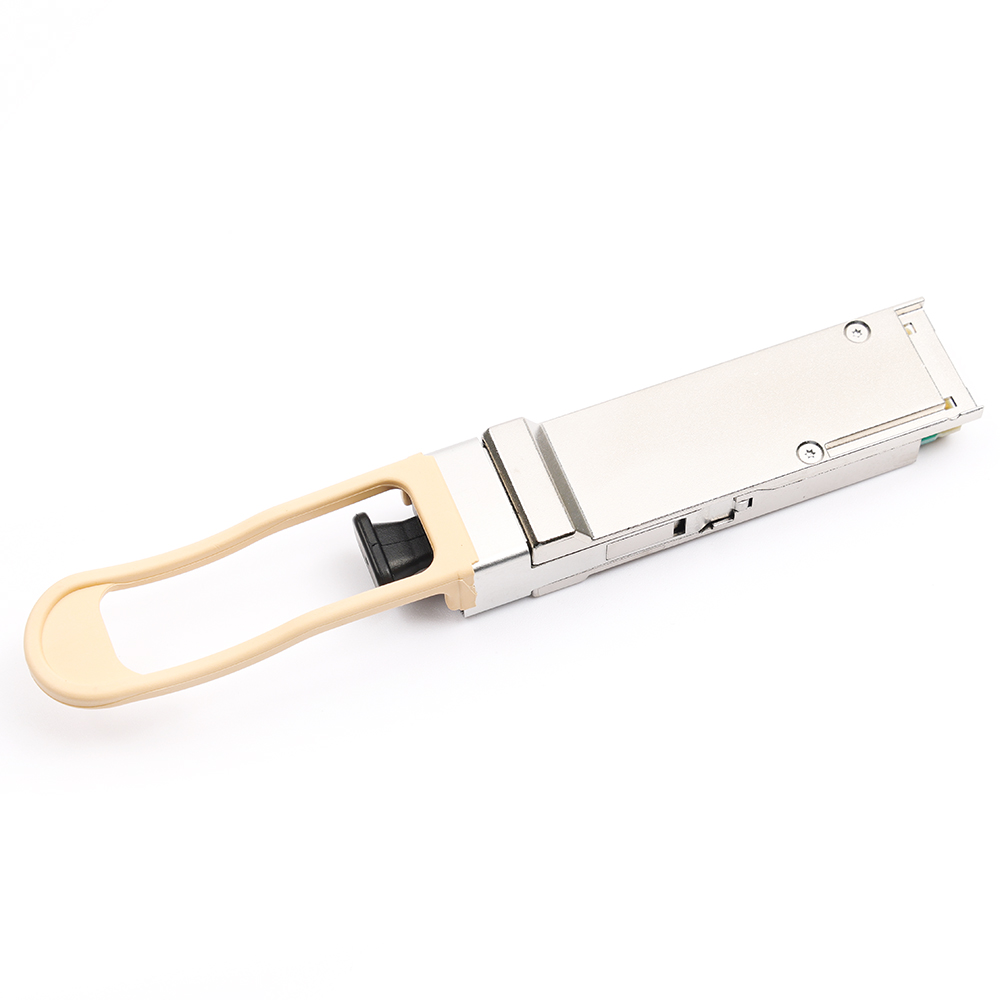

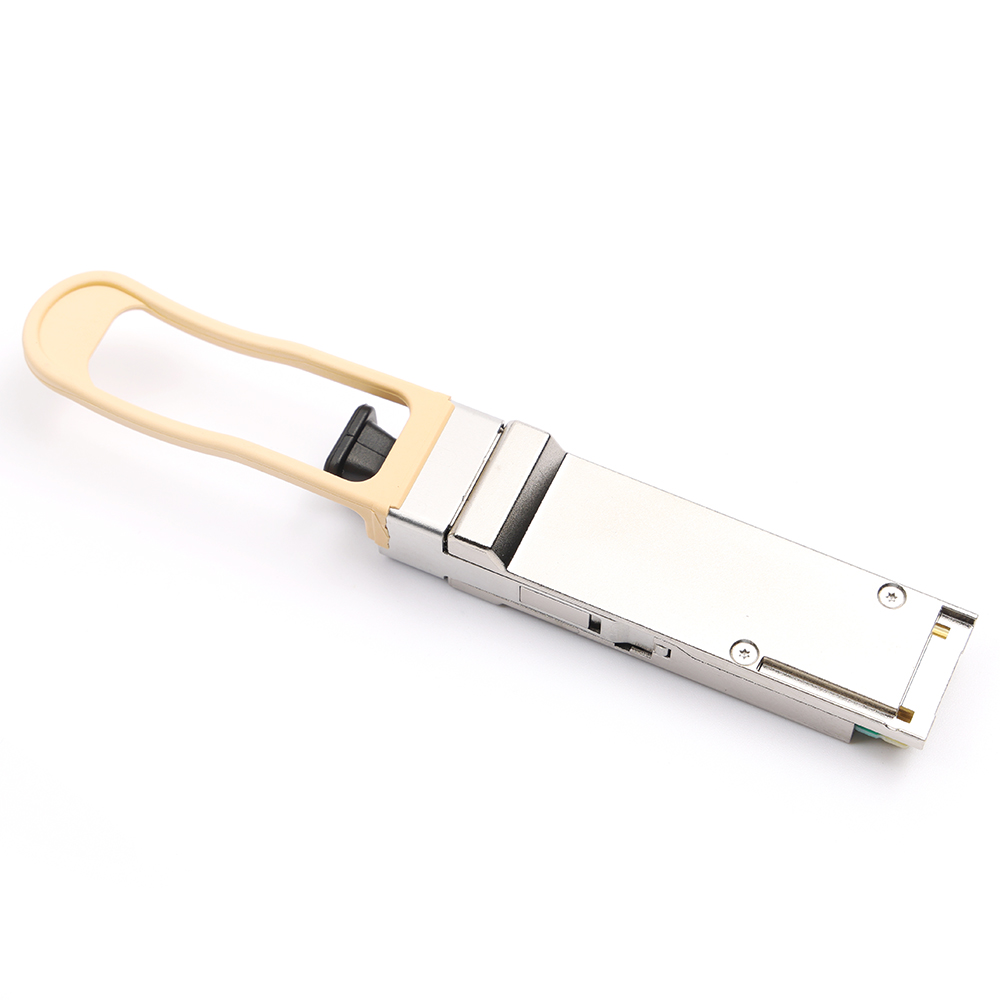

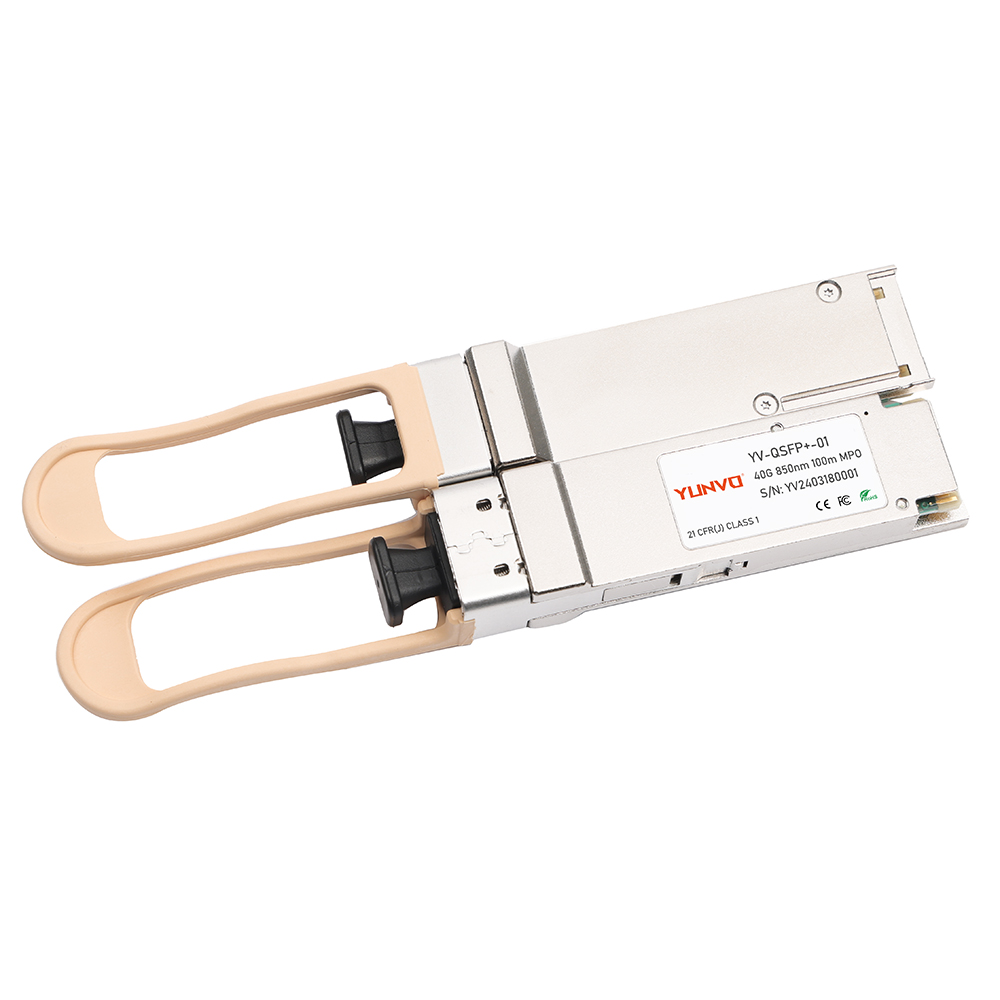

QSFP+ SR4

The 40G QSFP+ optical transceiver conform to QSFP+ MSA, the optical transceiver adopt LC or MPO optical interface, with low power consumption, small size, high reliability characteristics, is conducive to the data center to increase capacity, improve ports density and reduce power consumption, widely used in the data center network interconnection.

Send Enquiry

Order Model
Specifications

P/N	Data Rate	Wavelength	Reach	Connector	Tx Power	Rx Sensitivity	Source
YV-QSFP+-SR4	40Gbps	850nm	150m	MPO	-7~1db	≤-11.1db	VCSEL+PIN
YV-QSFP+-cSR4	40Gbps	850nm	400m	MPO	-7.5~0db	≤-9.9db	VCSEL+PIN

* Hot pluggable QSFP+ MSA form package, QSFP+ MSA compliant
* 4 independent full-duplex channels, Each channel has a maximum bandwidth of 11.2Gb/s
* 4*10Gb/s VCSEL/DFB/EML laser
* I2C management interface
* RoHS compliance
* Operating temperature range: 0~70°C(Commercial)
