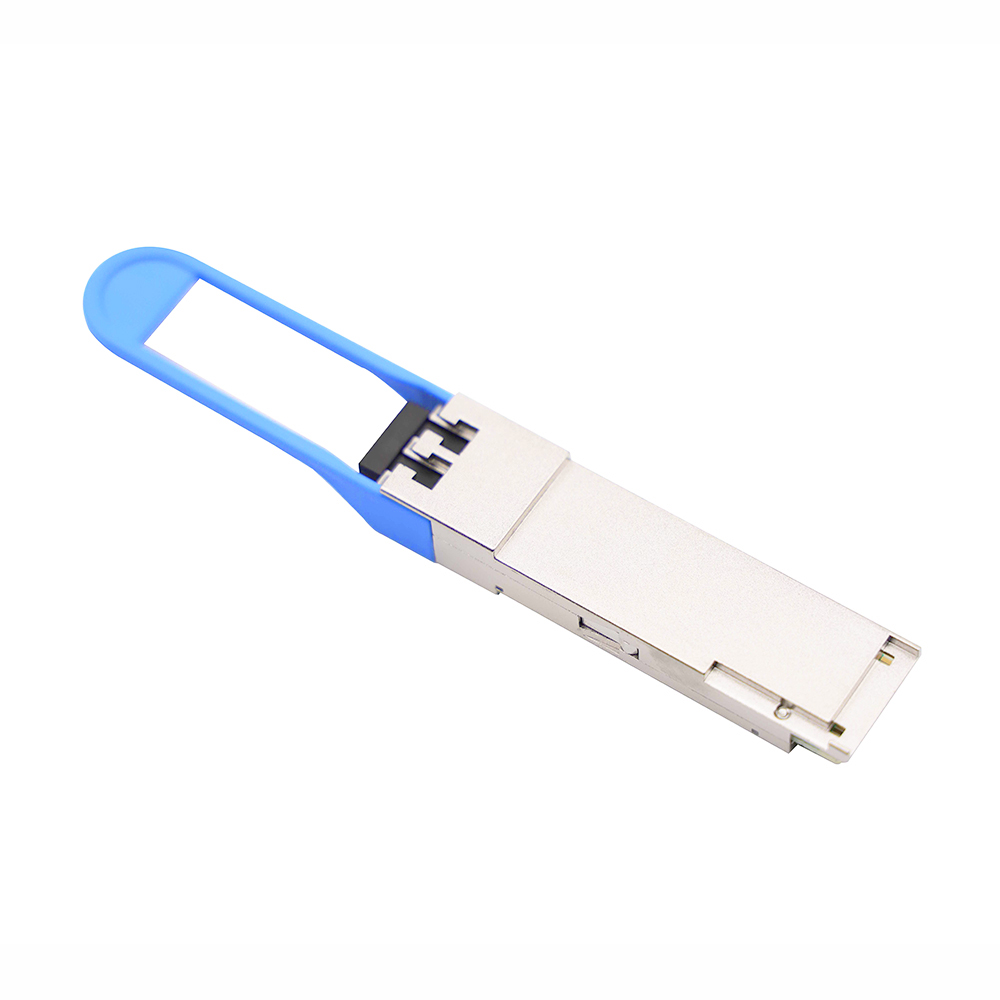

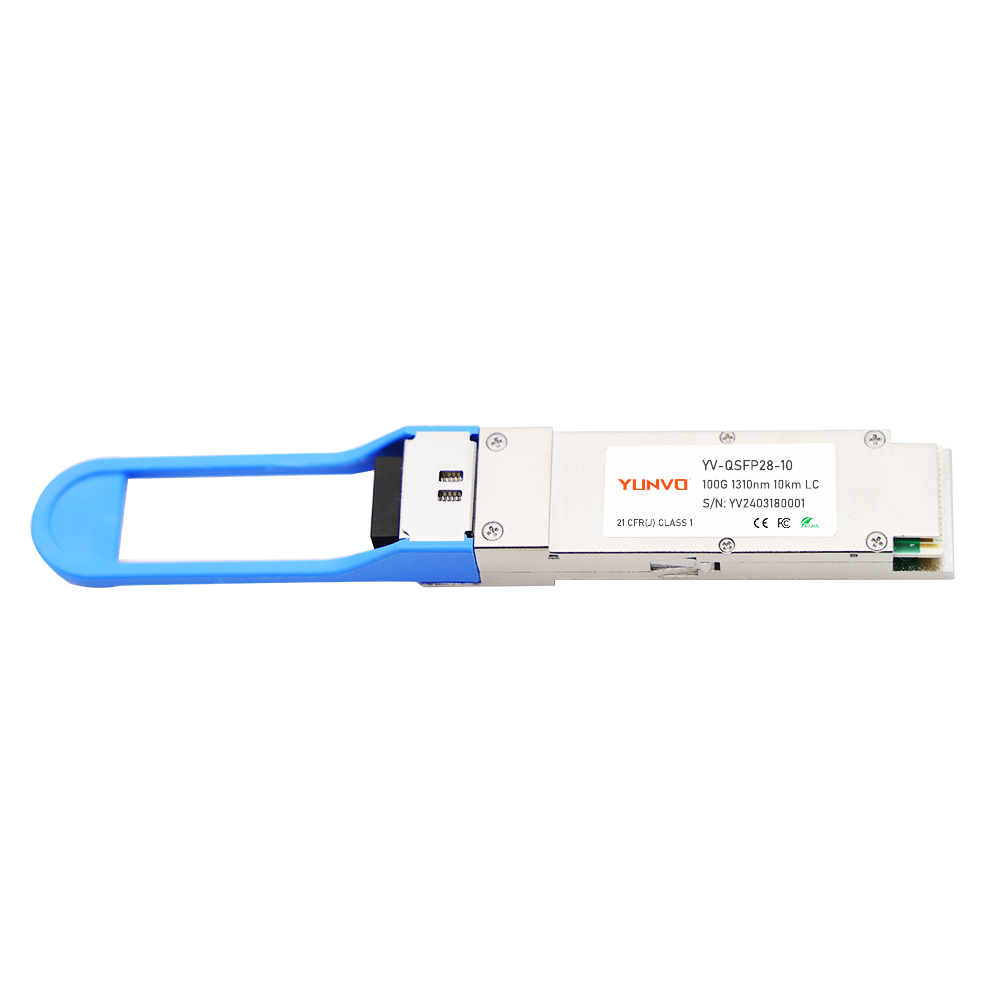

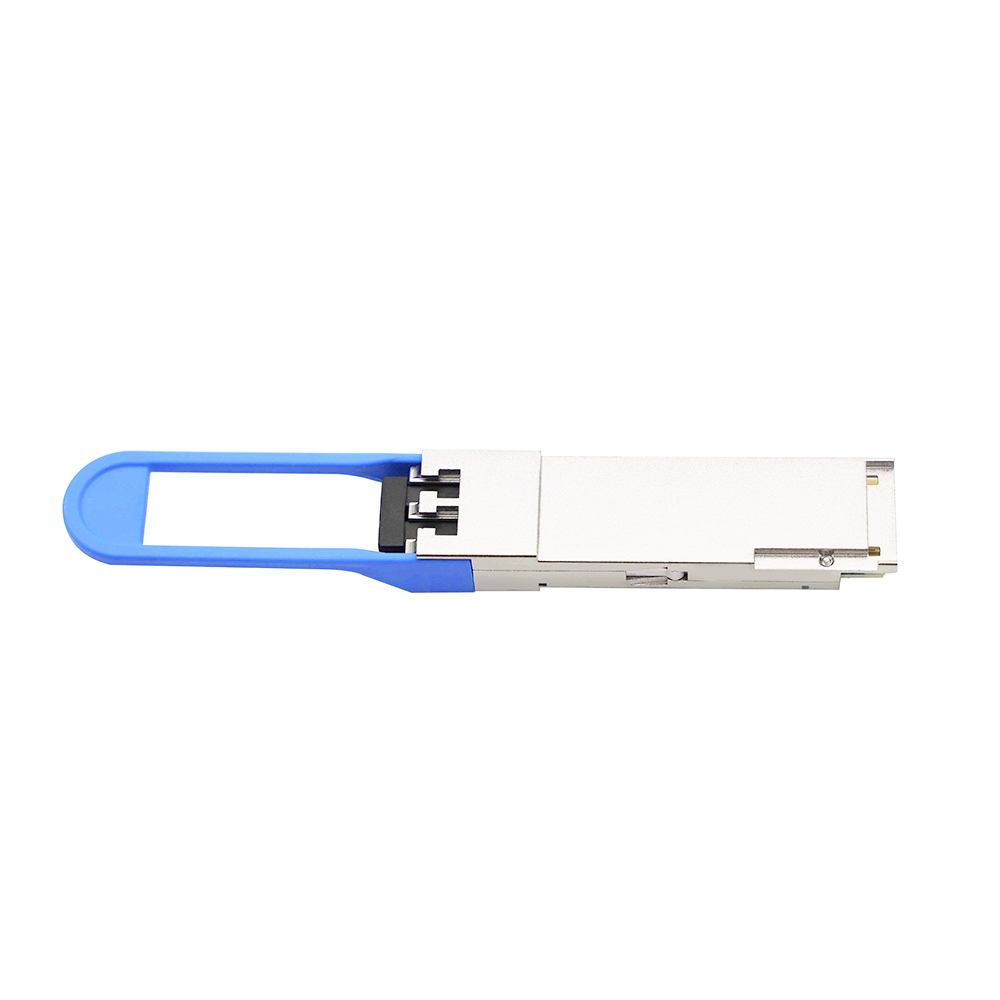

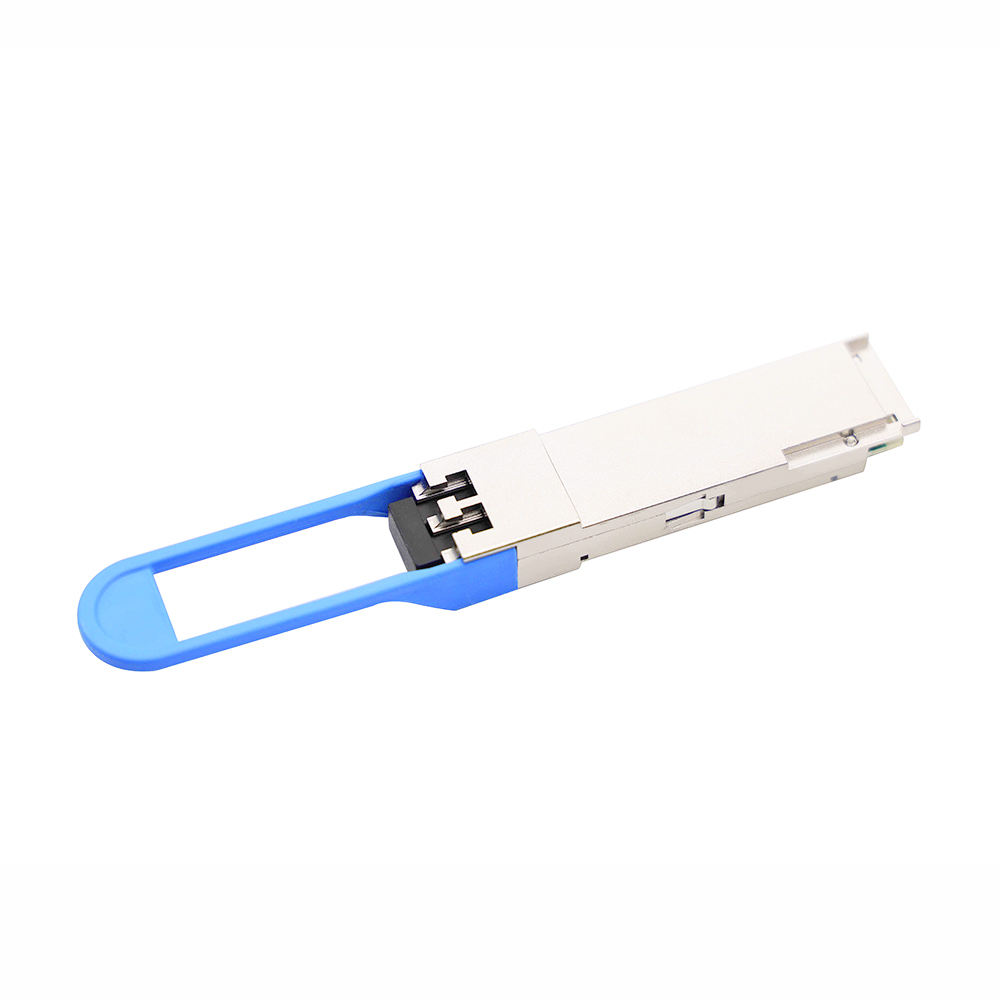

QSFP28 LR4


The 100Gb/s QSFP28 LR4 transceiver is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 LR4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.

Send Enquiry
  • Order Model
  • Specifications
  •
P/N Data Rate Wavelength Reach Connector Tx Power Rx Sensitivity Source
YV-QSFP28-LR4 100Gbps LAN-WDM 10km Dual LC -4.3~4.5db ≤-10.6db DML+PIN

* Hot-pluggable QSFP28 form factor
* Supports 103.1Gb/s aggregate bit rates
* Maximum link length of 10km on Single Mode Fiber (SMF)
* Power dissipation < 3.5W
* Built-in digital diagnostic functions
* Built-in CDR
* 4x25.78Gb/s DFB-based LAN-WDM transmitter
* Duplex LC receptacles
* Single 3.3V power supply
* RoHS compliant
* Operating case temperature: 0~+70°C
