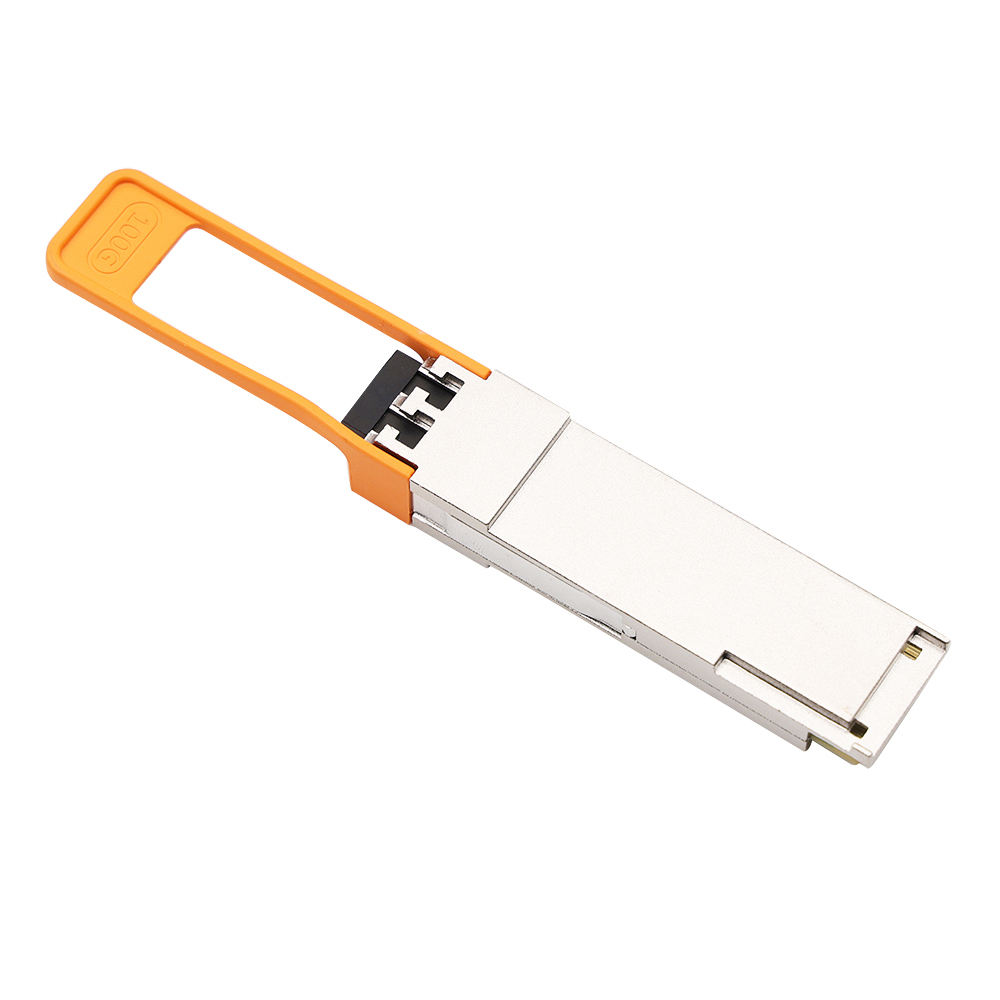

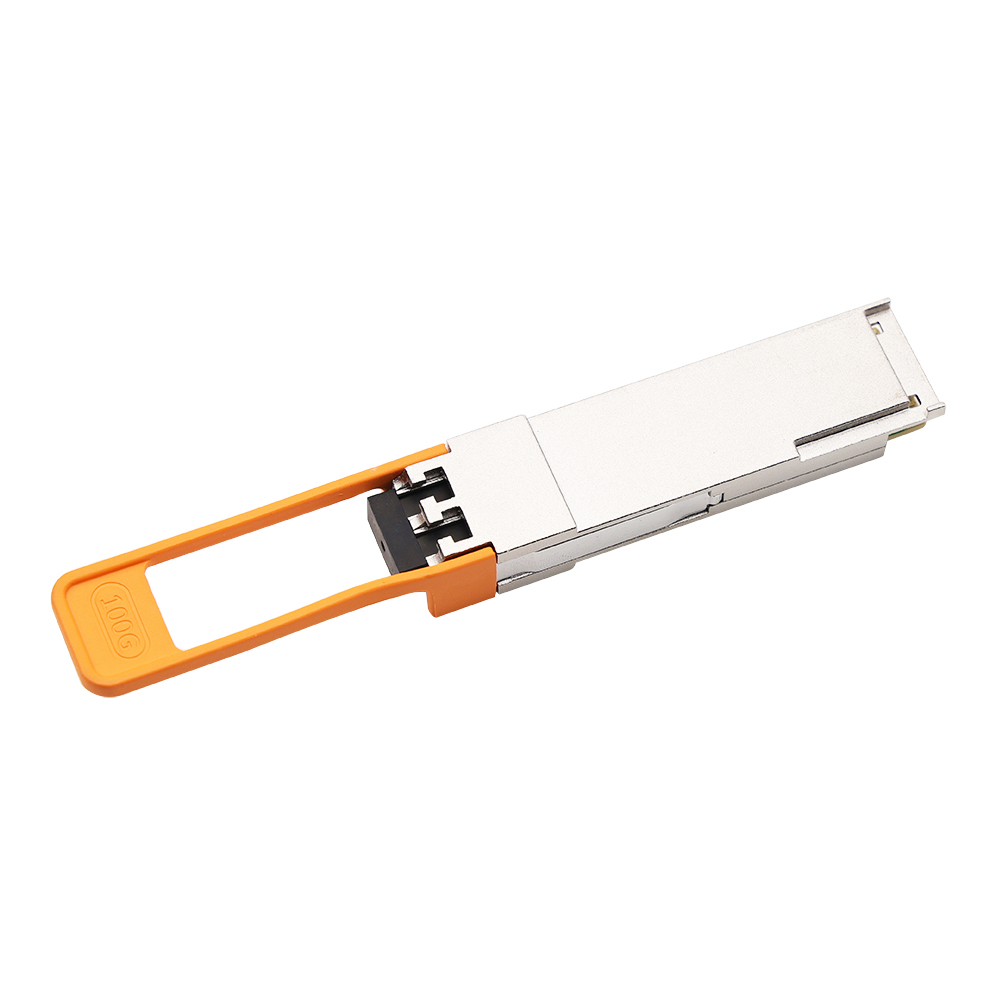

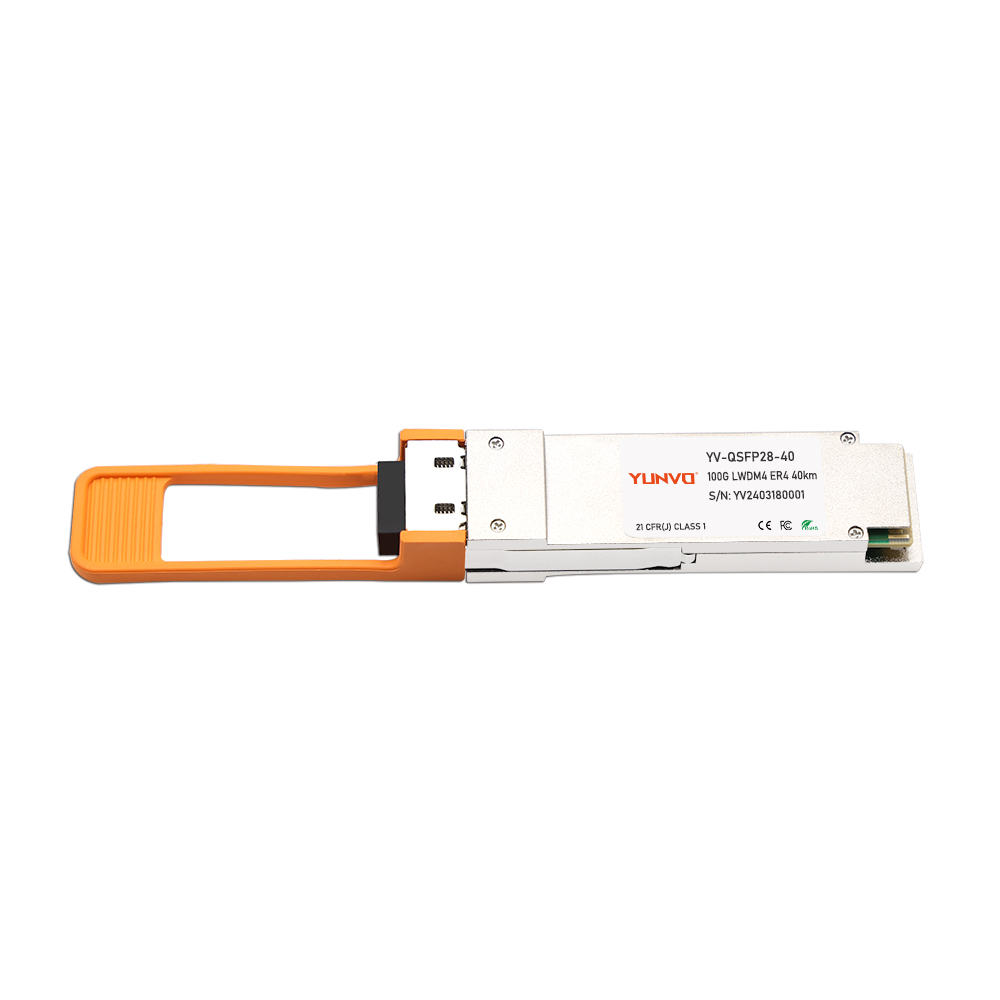

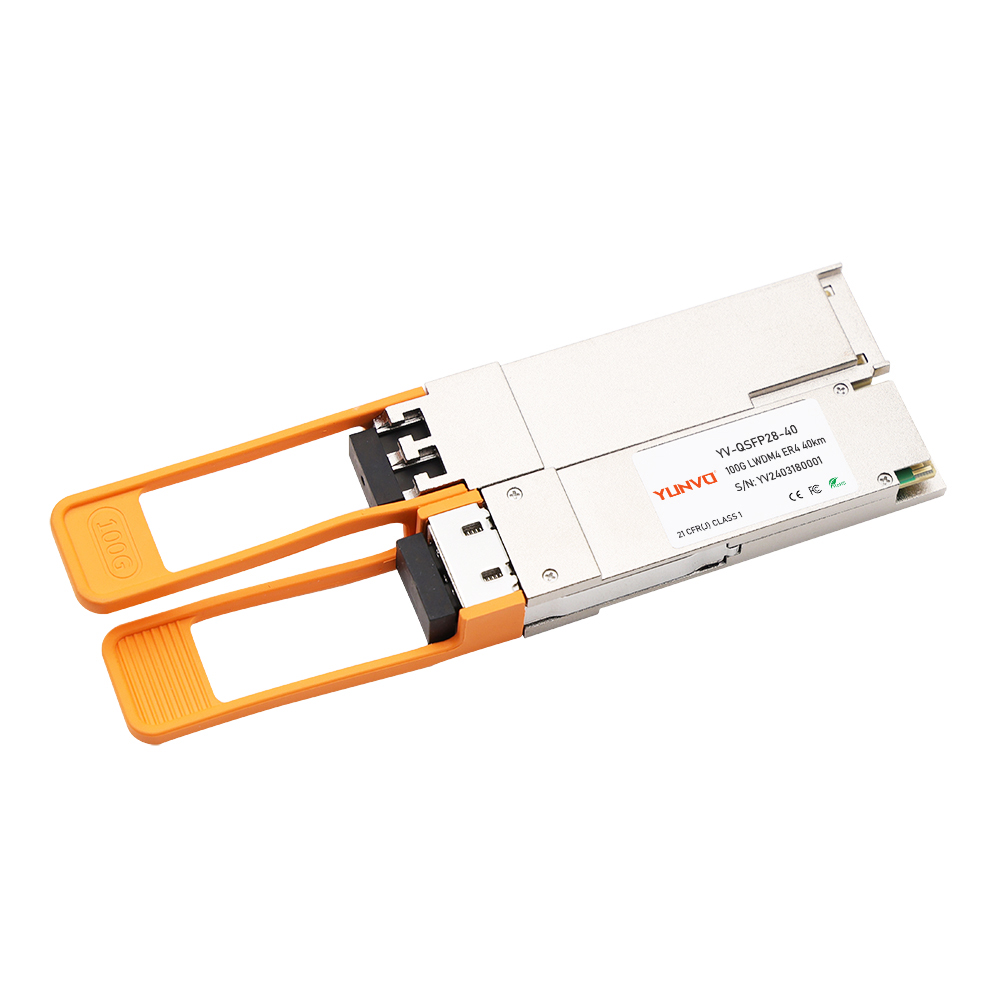

QSFP28 ER4

The 40km 100GBase-ER4 QSFP28 transceiver is designed to meet the requirements of 100G ethernet links
over SMF up to 40km. It is compliant with QSFP28 MSA, IEEE 802.3ba. It is cost-effective, low power consump
tion with a single 3.3V power supply. The module has an aggregate bit rate up to 103.125Gbps by multiplexing
of 4 independent LAN-WDM optical lanes, each lane capable of transmitting 25.78125Gb/s over 40km SMF.

Send Enquiry

Order Model
Specifications

P/N	Data Rate	Wavelength	Reach	Connector	Tx Power	Rx Sensitivity	Source
YV-QSFP28-ER4	100Gbps	LAN-WDM	40km	Dual LC	-2.9~6.5db	≤-20.9db	EML+APD

* Hot Pluggable QSFP28 form factor
* Supports aggregate bit rate up to 103.125Gb/s
* LC Duplex optical interface
* 4x25Gb/s LAN-WDM transmitter, EML laser,APD array detector
* Operating case temperature:0 to 70 °C
* Low power consumption <4.5W
* Applicable for 40km SMF connection without FEC
* All-metal housing for superior EMI performance
* Single +3.3V power supply
* RoHS compliant (lead free)
