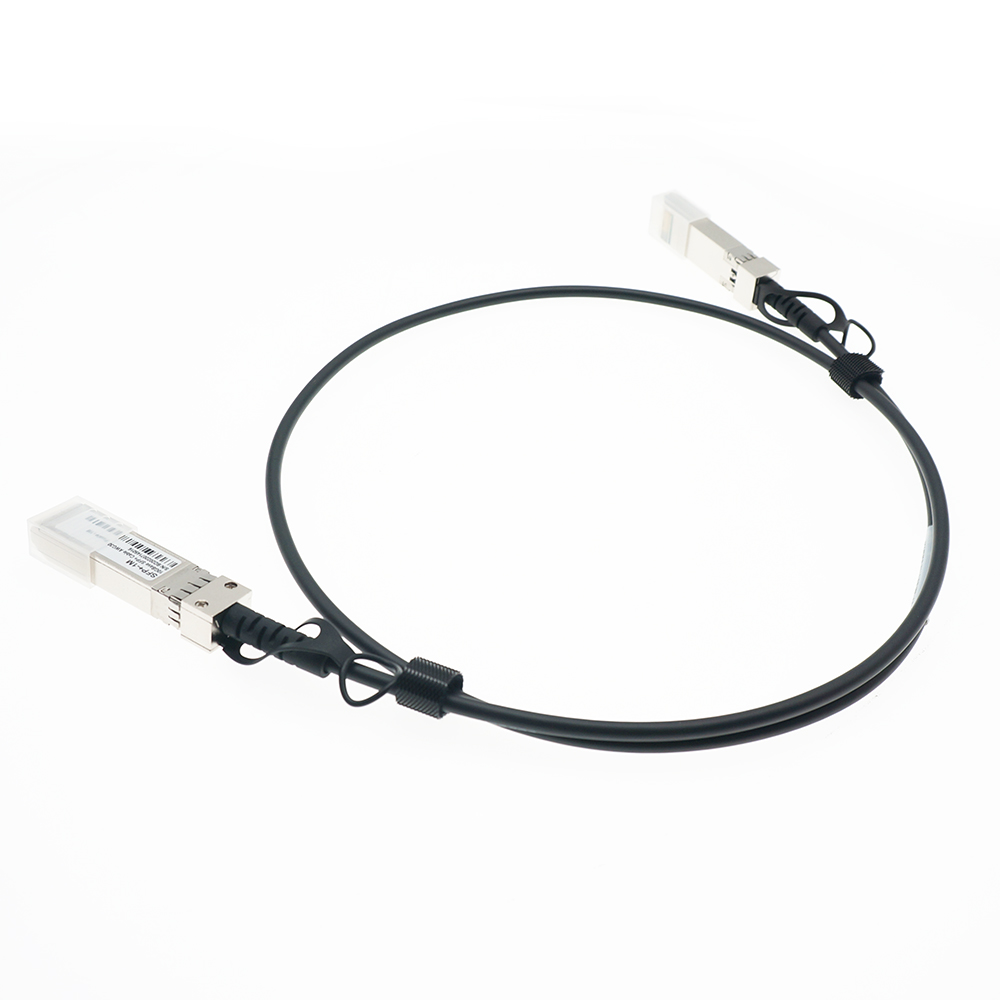

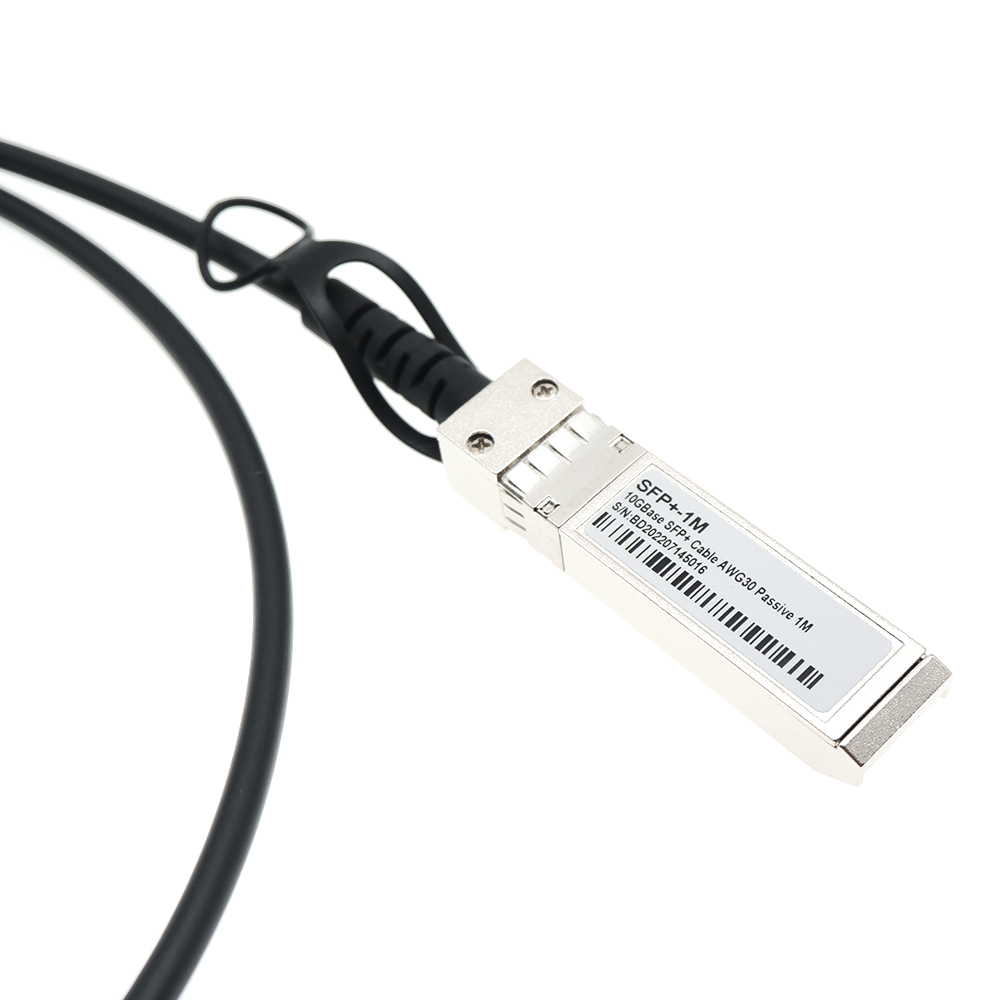

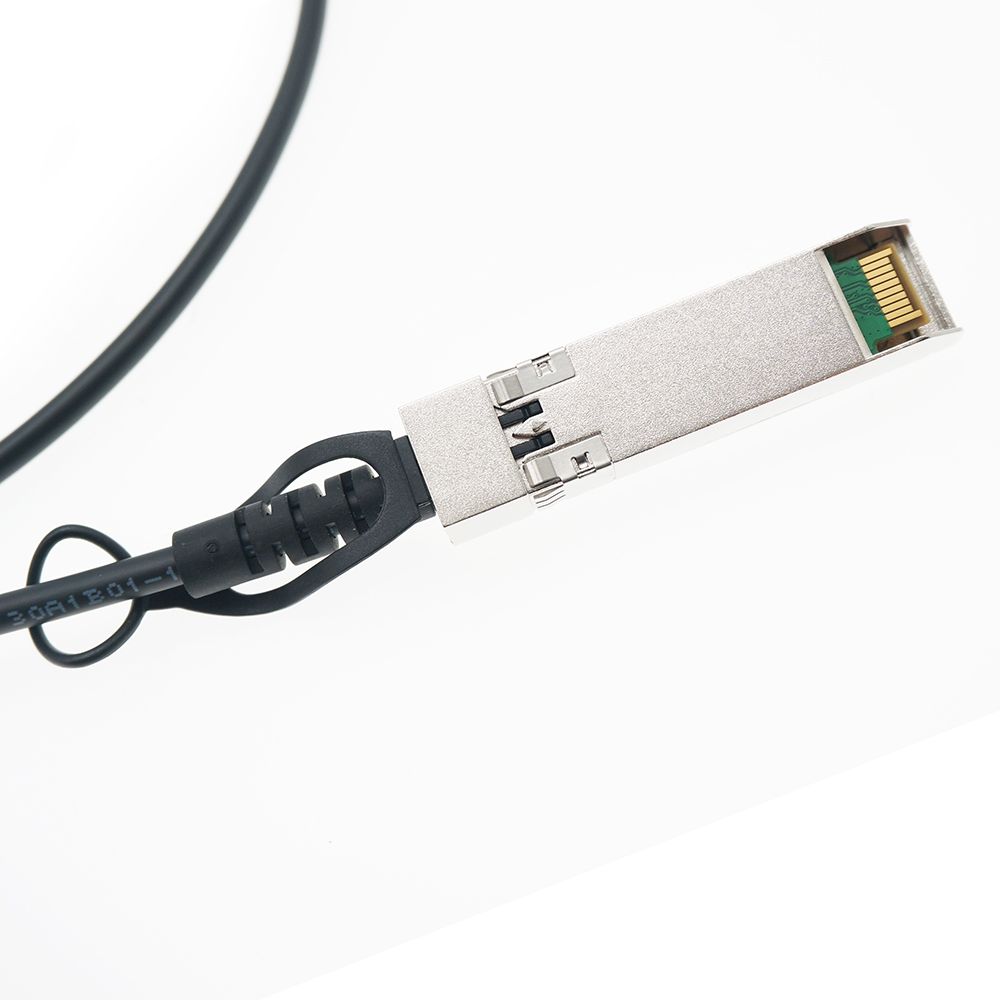

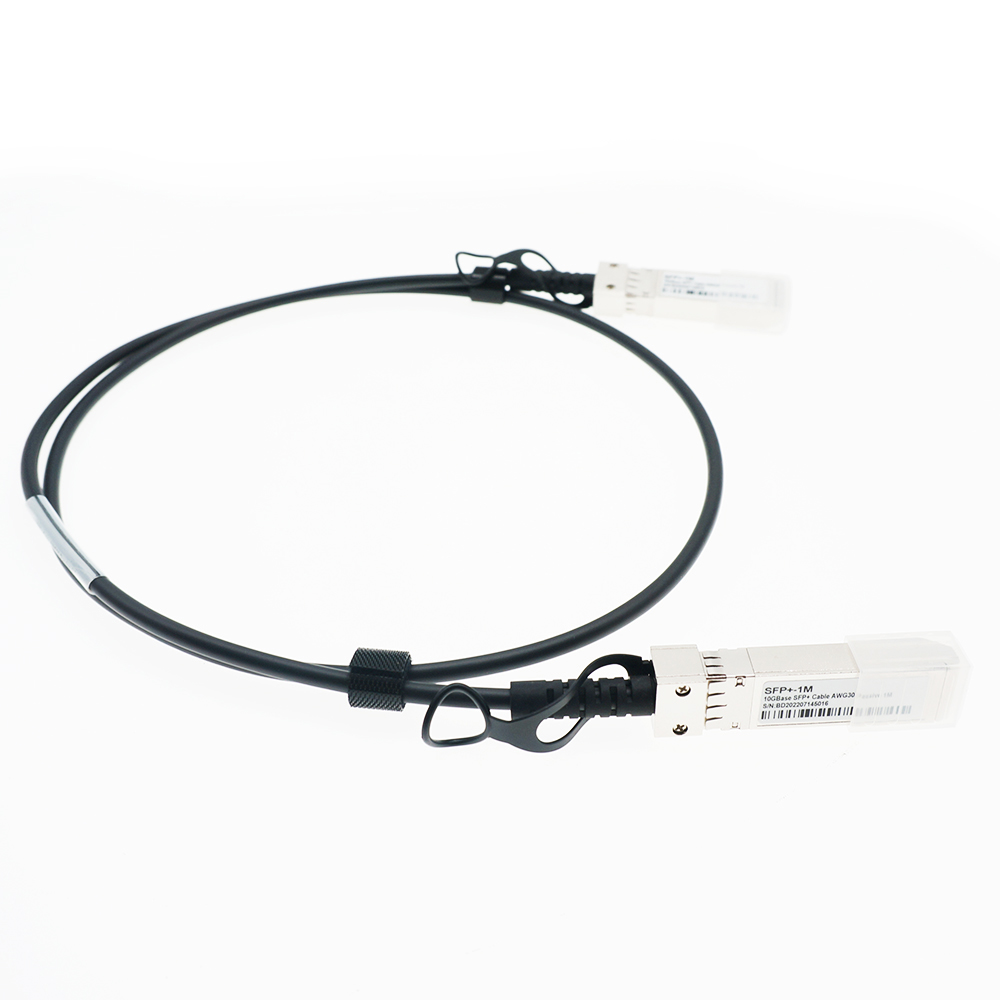

10G SFP+ to SFP+ DAC

10G DAC direct active cable includes AWG30/AWG28/AWG26/AWG24 wire gauge; The maximum transmission distance is up to 5m. It has the characteristics of low power consumption, small size and high reliability, which is beneficial to increase the capacity, improve the port density and reduce the power consumption of the data center. It is mainly used in data center interconnection.

Send Enquiry

Order Model
Specifications

Part Number	Product Description
YV-SFP+-D1M	10G SFP+ Passive Direct Attach Copper Twinax Cable 30AWG 1Meter
YV-SFP+-D2M	10G SFP+ Passive Direct Attach Copper Twinax Cable 30AWG 2Meter
YV-SFP+-D3M	10G SFP+ Passive Direct Attach Copper Twinax Cable 30AWG 3Meter
YV-SFP+-D5M	10G SFP+ Passive Direct Attach Copper Twinax Cable 24AWG 5Meter
YV-SFP+-D7M	10G SFP+ Passive Direct Attach Copper Twinax Cable 24AWG 7Meter

* Support for multi-gigabit data rates up to 10.5Gbps
* Data rates backward compatible to 1Gbps
* Support for 1x, 2x, 4x and 8x Fibre Channel data rates
* Hot-pluggable SFP 20PIN footprint
* I/O Connector designed for high speed differential signal applications
* Improved Pluggable FormFactor(IPF) compliant for enhanced EMI/EMC performance
* Low Power Consumption < 0.5W
* Power Supply :+3.3V
* Compatible to SFP+ MSA
* Temperature Range: 0~ 70 °C
* ROHS Compatible
