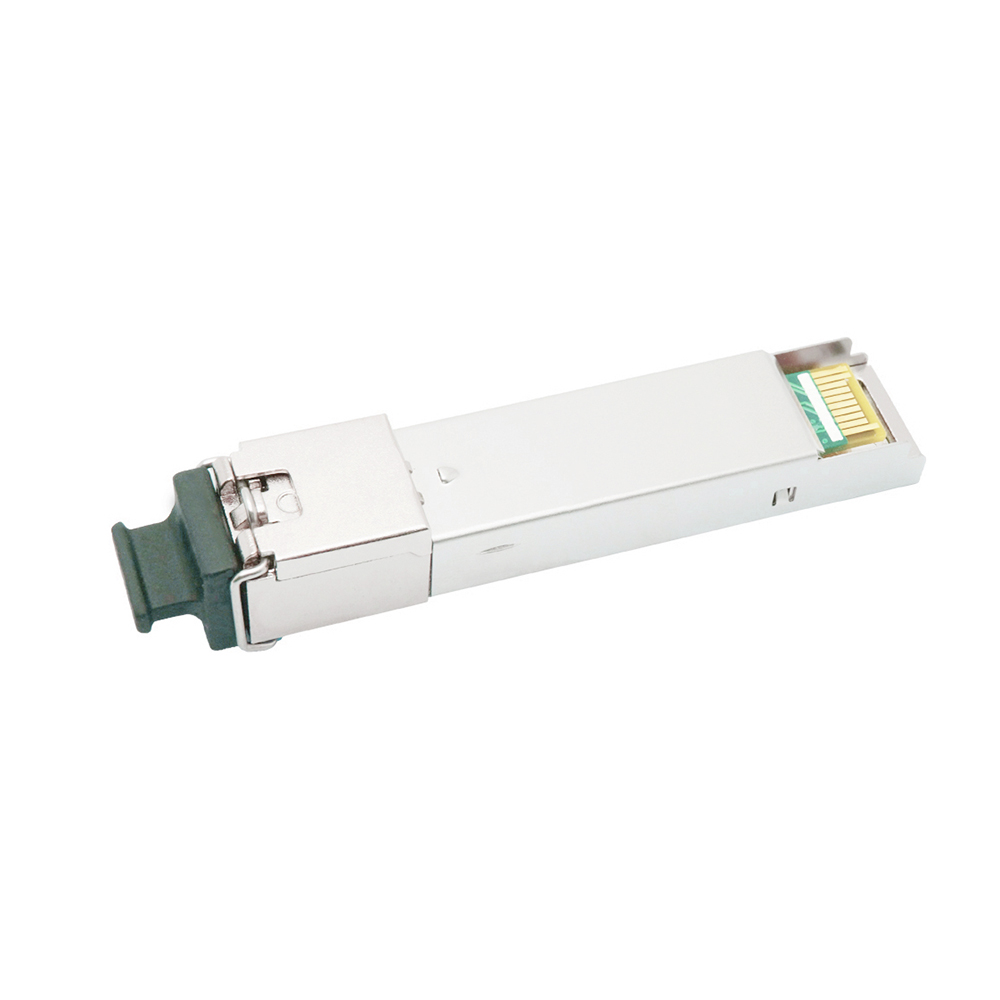

EPON OLT PX20+++


EPON OLT SFP transceiver provides a symmetric 1.25Gbps upstreamanddownstream, reaching a link up to 20km over SMF via SC connector. It is fully compliant with RoHS standards andisideal
for symmetric 10Gigabit capable passive optical network (EPON) system.

Send Enquiry
  • Order Model
  • Specifications
  •
Part Number Description
YV-EOLT-PX20+++
EPON OLT SFP 1.25G/1.25G Tx1490/Rx1310nm 20km SC PX20+++ 8db

* Applied to EPON OLT for a Single Fiber Bi-directional EPON System
* SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472
* Burst Digital Receiving Signal Strength Indication (RSSI)
* Single 3.3V power supply
* Operation case temperature -40~85°C for industrial, -25~85°C for extended and -10~70°C for commercial
* RoHS-6 compliance
