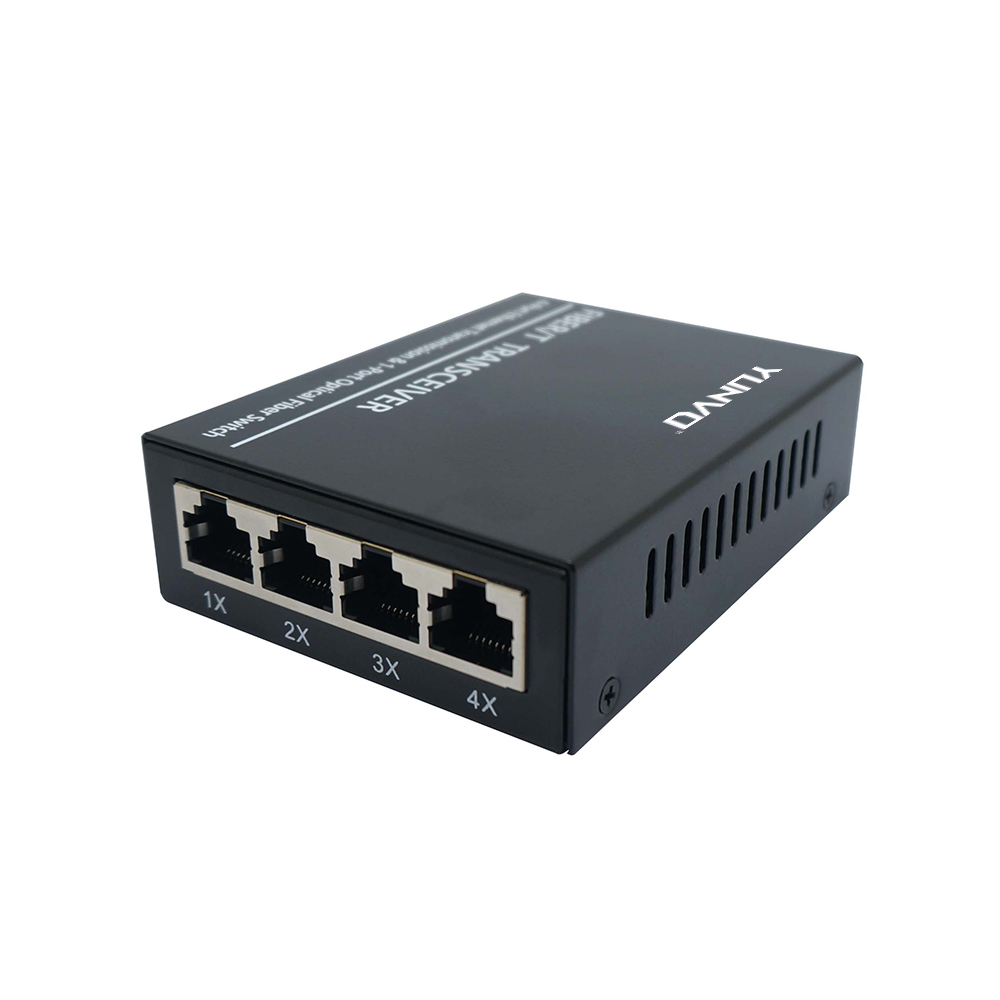

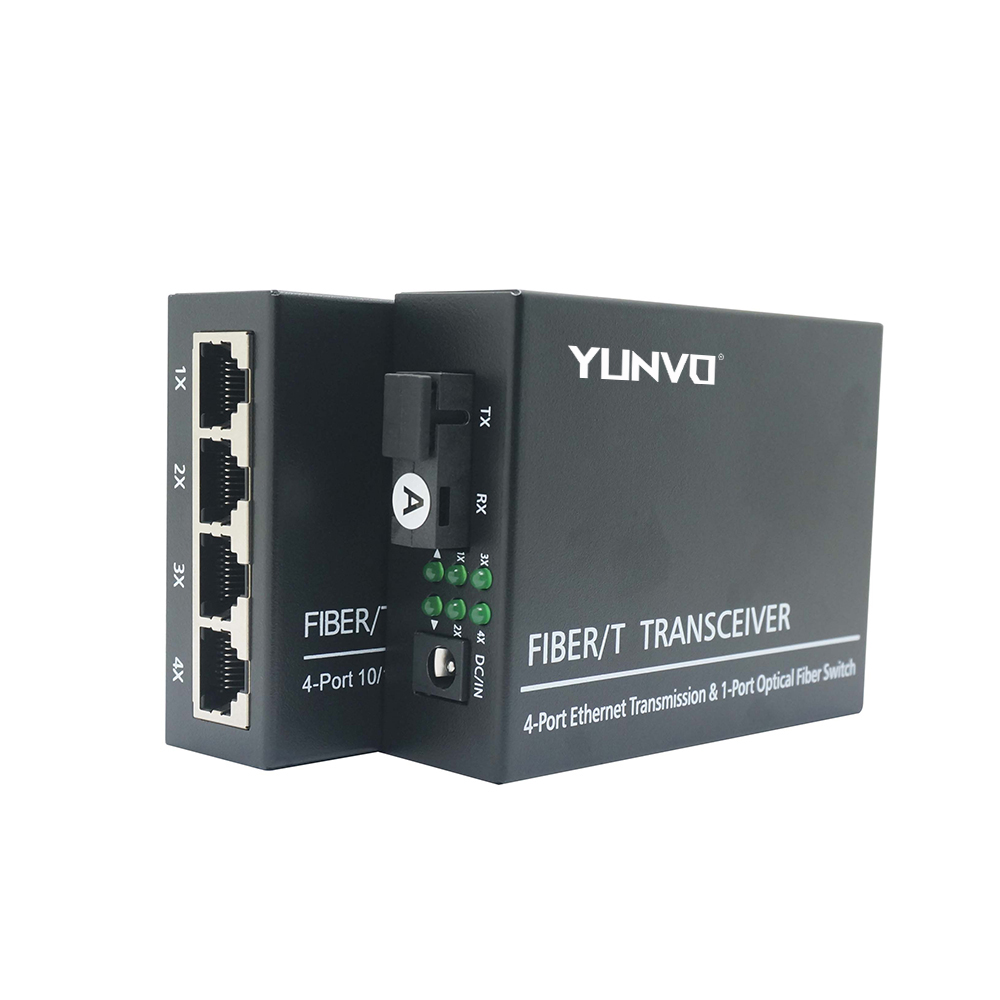

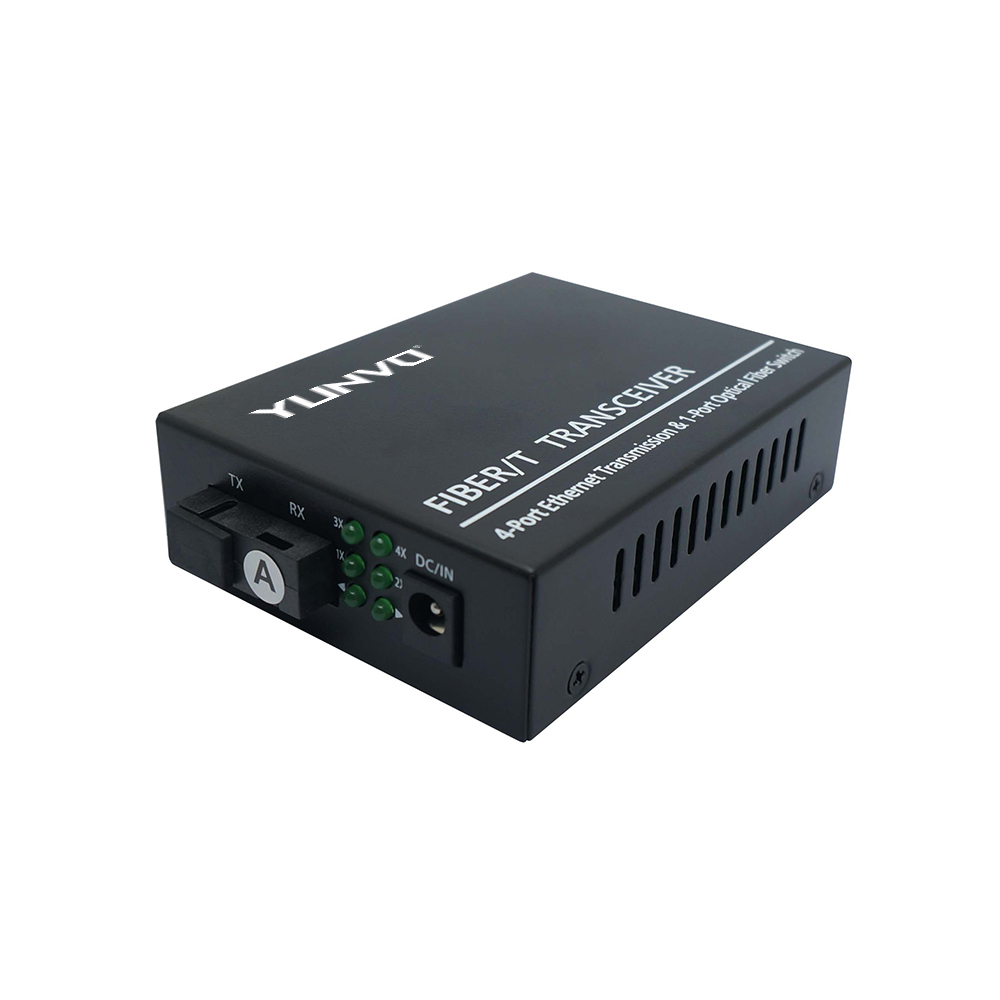

1Fiber 4RJ45

The fiber switches are unmanageable,they can extend the network transmission from 100m to 120km,can realize the interconnection between motherboard server, Repeaters, hubs, switches, terminal.Plug and play design makes easy installation, no on-site adjustment. Operation status can be monitored through a set of Diagnostic LED.

Send Enquiry

Order Model
Specifications

Part Number	Description
YV-1F4FE-xx	10/100M 1Fiber 4RJ45, xx=550m~120km
YV-1F4GE-xx	10/100/1000M 1Fiber 4RJ45, xx=550m~120km
YV-SFP-4FE	10/100/1000M 1Fiber 4RJ45, supports 155Mbps SFP
YV-SFP-4GE	10/100/1000M 1Fiber 4RJ45, supports 155Mbps SFP

* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ, IEEE802.1d Spanning Tree.
* Hot Plug-gable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Stable performance more than 50 thousands hours with fault-free.
