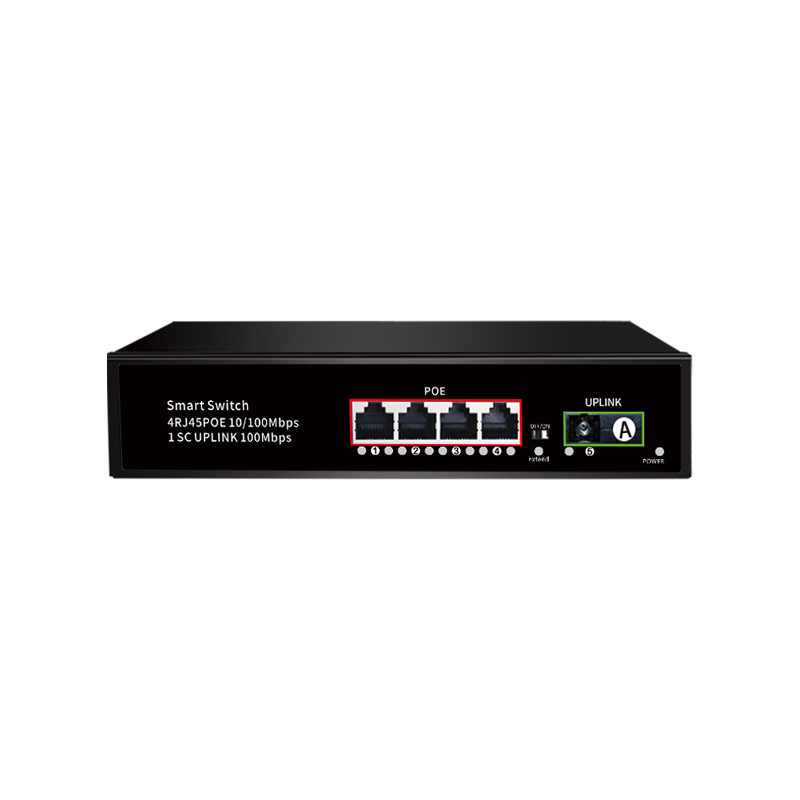

10/100M 4POE


The POE switches provide power and data transmission via Cat cables. Auto-sensing function can supply power to PD device (IEEE802.3af/at standard). If the PoE device disconnected, it would stop supplying power. The POE Converter features simple and reliable design, automatic identification of PoE supply voltage and power, speed, full duplex and Auto Uplink cable type.
This cost-effective switch can apply to wireless access point (AP) and IP-based surveillance Network solutions.

Send Enquiry
  • Order Model
  • Specifications
  •
Part Number Description
YV-6005FE 10/100M 4POE+1RJ45
YV-6006FE 10/100M 4POE+2RJ45
YV-6104FE-xx 10/100M 4POE+1Fiber, 1*9 Transceiver xx=550~100km

* IEEE 802.3af/at power on POE port
* Supply power to wireless access points and surveillance cameras over Cat cable
* POE ports support MDI/MDIX
* POE Lines: End-Span(12+,36-), Mid-Span(25+,78-)
* Support IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
* LED indicators for monitoring power, link, activity and speed
* Network Media: 10BASE-T: Cat3 or more UTP(≤250 meter);100BASE-TX: Cat5 or more UTP (≤100 meter); Cat6 or more UTP (≤150 meter)
* Working Environment: Operating Temperature: 0 ° ~ 70 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing
