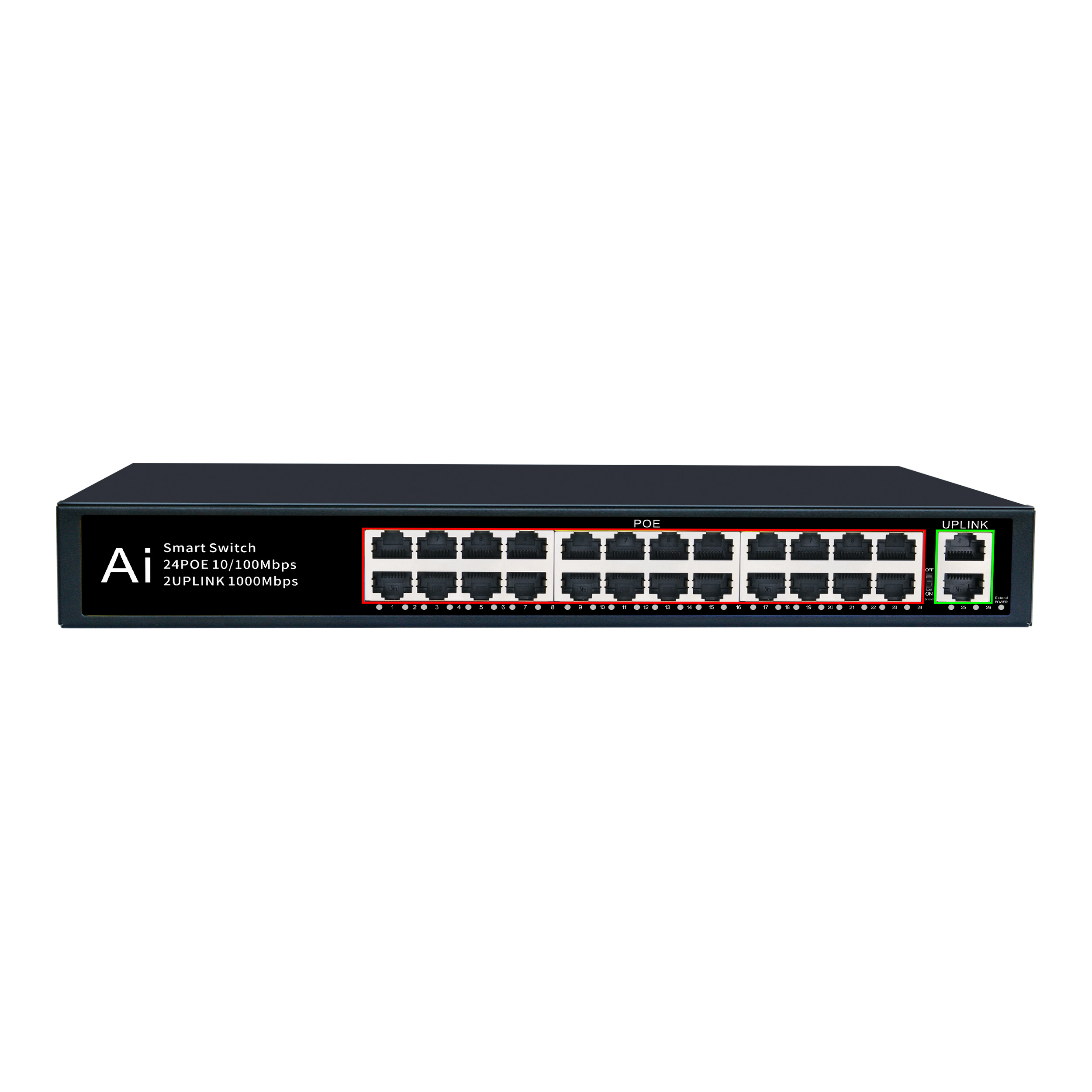

10/100M 24POE

The POE Switches provide power and data transmission via Cat cables. Auto-sensing function can supply power to PD device (IEEE802.3af/at standard). If the PoE device disconnected, it would stop supplying power. The POE Converter features simple and reliable design, automatic identification of PoE supply voltage and power, speed, full duplex and Auto Uplink cable type.
This cost-effective switch can apply to wireless access point (AP) and IP-based surveillance Network solutions.

Send Enquiry

Order Model
Specifications

Part Number	Description
YV-6026FEGE	10/100M 24POE+10/100/1000M 2RJ45
YV-6226FEGE	10/100M 24POE+10/100/1000M 2RJ45+2SFP
YV-6226FEGE-1U	10/100M 24POE+10/100/1000M 2RJ45+2SFP

* IEEE 802.3af/at power on POE port
* Supply power to wireless access points and surveillance cameras over Cat cable
* POE ports support MDI/MDIX
* POE Lines: End-Span(12+,36-), Mid-Span(25+,78-)
* Support IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
* LED indicators for monitoring power, link, activity and speed
* Network Media: 10BASE-T: Cat3 or more UTP(≤250 meter);100BASE-TX: Cat5 or more UTP (≤100 meter); Cat6 or more UTP (≤150 meter)
* Working Environment: Operating Temperature: 0 ° ~ 70 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing
